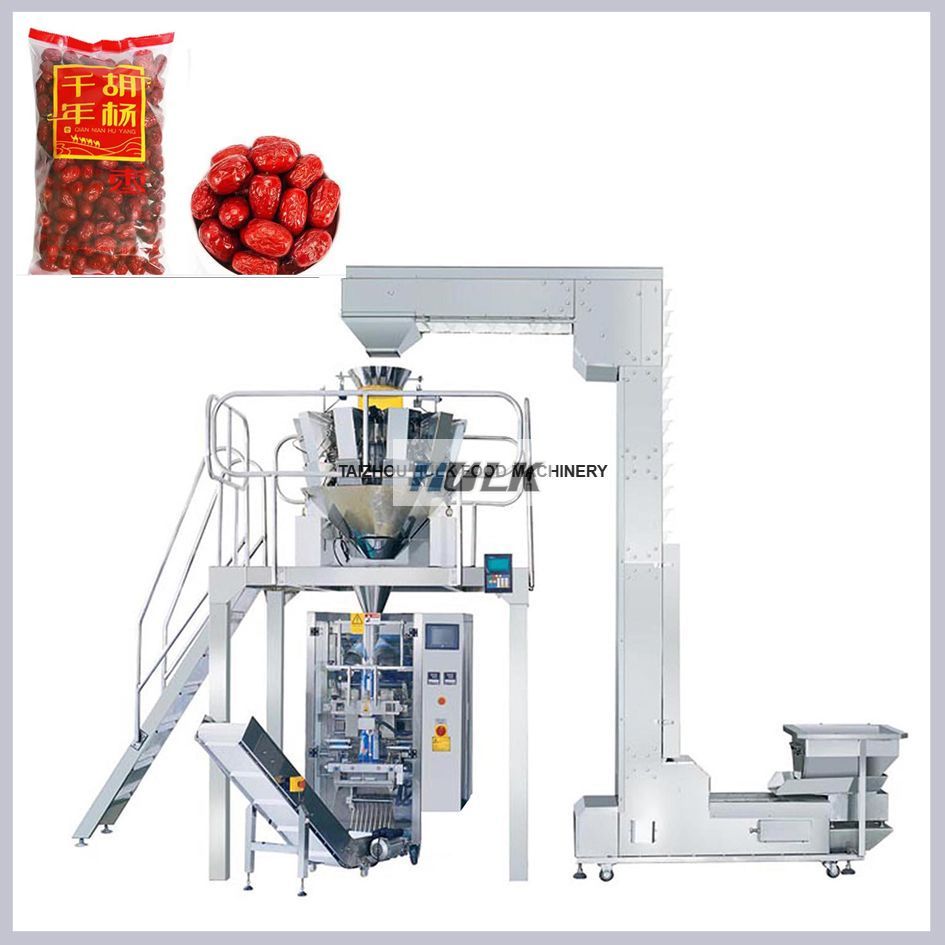

Automatic Vertical Form Fill Seal and Packaging Machine
Application:Snacks, Dry nuts, Dried Fruit, Seeds, Rice, biscuits, Confectionery, Chocolate, fast Frozen food etc.
Advantage:
the machine uses the servo motor film pulling system. easy operation, stable working performance and long service life.
Function:
standard double servo motors control or multi-servo motors option customized. PLC control, human-interface display. high speed packing performance.
double belt film pulling and paper infeed system, colormark inspection. the touch screen can adjust the cutting length, colormark distance, sealing position.
recipe storage function for the packing machine. it's suitable for various product package for easy shift.
precise and intelligent temperature control, beautiful sealing and flat.
equips with safety protective cover to ensure the staff safety during the machine operation.
the machine can finish the complete packing procedure from conveying, weighing, filling, form, seal, output.
Main technical parameters
| Model | VFS-300 | VFS-350 |
| Bag Size | L 80-400mm W 80-280mm | L 80-430mm W 90-350mm |
| Packing Speed | 15-70bags/min | 15-70bags/min |
| power supply | 1 or 3 phase 220v/380 50hz/60 customized | 1 or 3 phase 220v/380 50hz/60 customized |
| compress air consume | 6kg/cm2 250L/min | ≥6kg/cm2 |
| noise | ≤75db | ≤75db |
| power | 4.2kw | 5kw |
| dimension | 2125*1395*1690 | 2050*1550*1800 |
weight
| 900kg | 980 |
