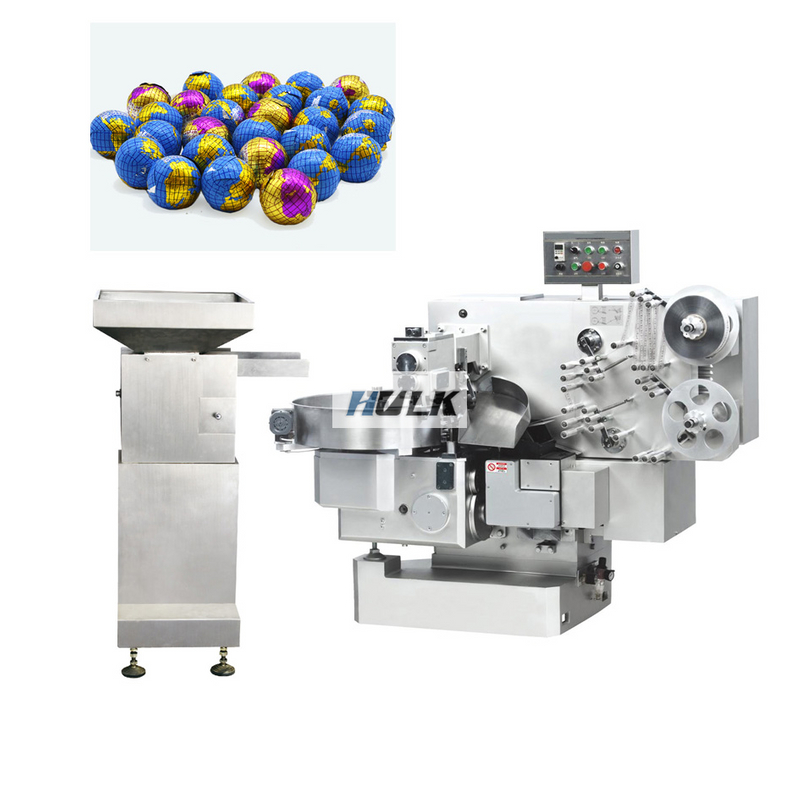

High Speed Ball Egg Shape Chocolate Packing Machine(HK-D800)
Applications
Product shape: ellipse, cylindrical, waist round, block, square, etc.
Main Features
1.High-density cam indexing unit, cam gear transmission.
2.Automatic bag length adjustment, Double layer films available..
3.Equipped with Automatic photocell avoiding film-cutting error.
4.Connected part with food is stainless steel structure, no pollution, high level food hygiene.
5.Frequency converter, stepless speed regulation.
Optional accessories & special versions
-Auto vibration device
Technical Parameters
Model | Ball shape Packing Machine |
packing speed | 300 pcs/min |
Net weight | 1080KG |
the product specification | length12-34*width10-28*height6-20mm |
Outside dimensions | 1950mm×1090mm×1475mm(L*W*H) |
Total power | 4.5KW |
voltage | 380V, 50HZ |
the packing shape of product | Ball shape |
Delivery time: 45day after the deposit
Payment: 30T/T in advanced, the balance should be paid before delivery
Packing: seaworthy wooden case
Warranty:
Under normal running and maintenance conditions, a guarantee period of one year starting from the date of finishing the installation.
