HK-CF300
HULK
8422303090
7.5KW
Availability: | |
---|---|
Quantity: | |

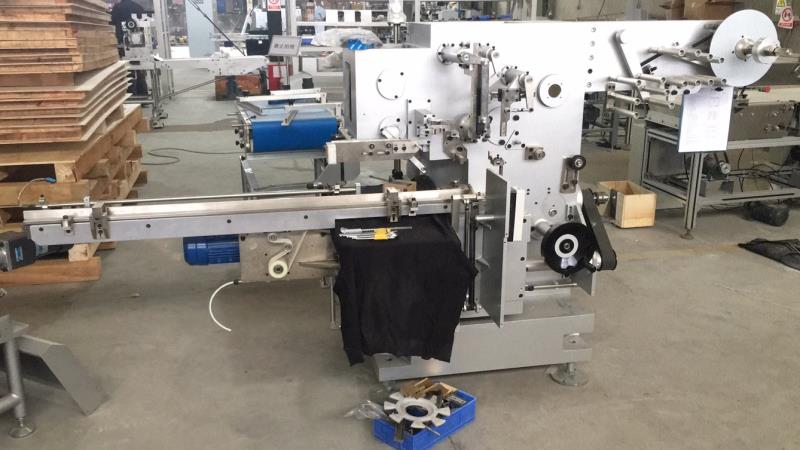

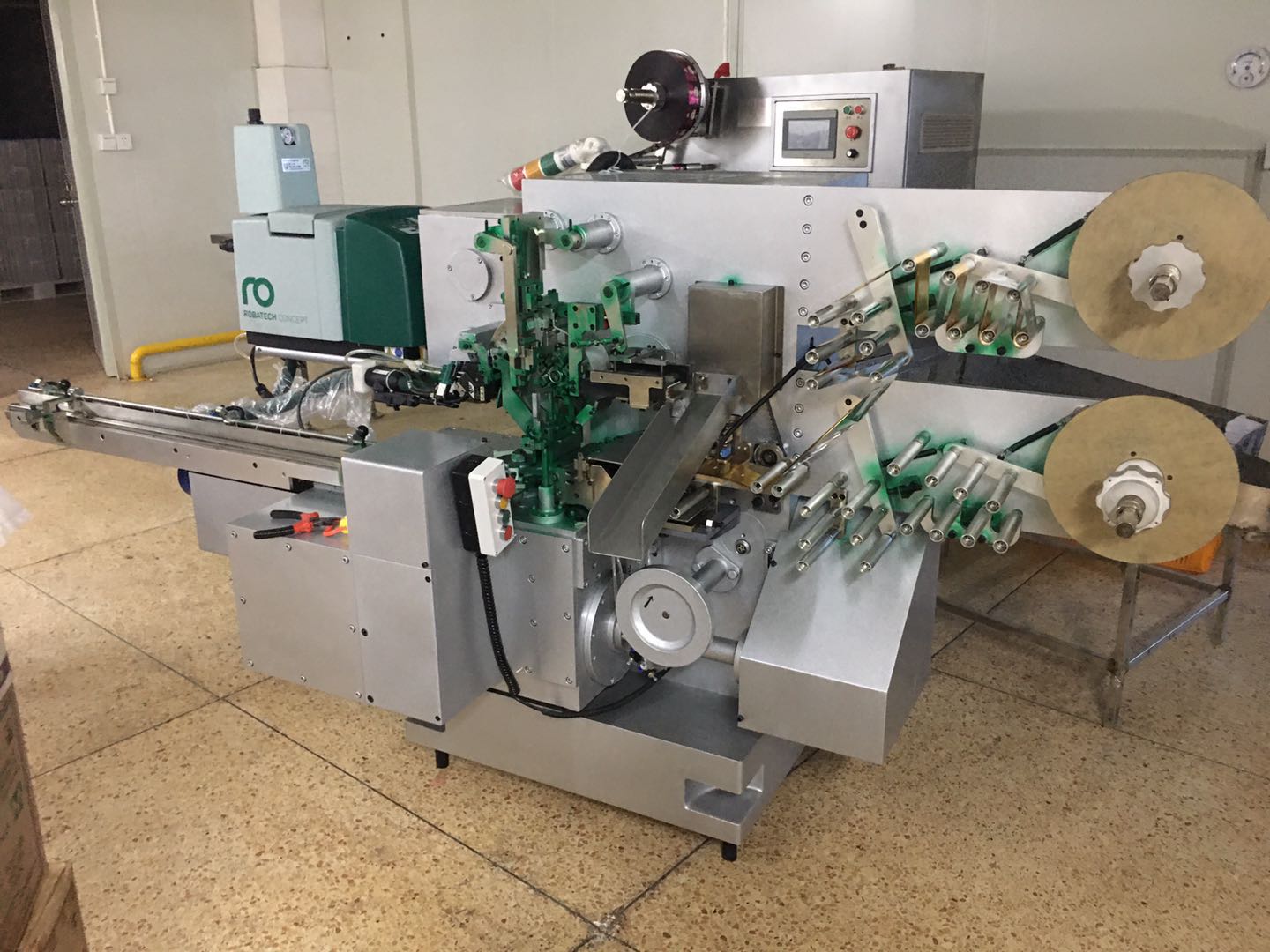

Single Twist Chocolate Top Twist Wrapping Machine
Production Standard:
1. Control system: Siemens control system, including PLC, HMI and main frequency convertor.
2. Robatech glue machine.
3. Self designed control system for non-experience operation.
4. Patent design aligning system for chocolate feeding.
5. Fast belt replacement, cleaning within 10 seconds.
6. Fast clean of whole aligning machine.
7. Standard cabling & wiring same quality as per EU standard.
8. Equipments safety: meets highest standard fromChina. For any special requirements, customer shall inform us in advance.
9. We select best material for our machines. All machines are designed and manufactured for more than 20 years of stable running.
10. Machines need to be connected with compressed air.
11. Painting: metallic sliver pray, mat surface.
12. Working environment: temperature 18-23℃, R.H.<45%
Other Commercial Terms:
PRICES:This price is based onFOB price.
DESPATCH: Within 90 days after receipt of the down payment and clear of necessary technical parameters. If any unexpected events happened such as force majeure, delivery will be postponed accordingly.
INSPECTION:Customer should come to inspection the machine’s trial running before shipment, however, the testing material such as chocolate mould, packing paper and testing samples should be supplied by customer in time, mould should be supplied in 30 days after contract date, paper and testing samples should be supplied 20 days before factory delivery.
PAYMENT TERMS:
40% of the invoice value:as down payment payable against the Proforma Invoice from the Seller by T/T;
60% of the invoice value: payable by T/T before shipment.
INSTALLATION:
Installation and commissioning by our specialized fitters. Standard: USD.100.00 per fitter per day. Time including traveling time. Exact commissioning time and number of technician will be informed by the Seller. The return air tickets with all local accommodations are at the buyer’s account.The buyer also needs find an interpreter forfitters for easy communication and supply necessary mechanic help. Relevant commissioning charge should be paid to the Seller before commissioning.
QUOTATION VALIDITY:
1 month from the date of this quotation.
Warranty:
We grant warranty for absence of defects and for assured properties and characteristics of theitemsbeing supplied.Natural wear, inappropriate handling and operation etc, are excluded from the warranty. We grant warranty after having decided freely - after due assessment of the circumstances – bysubsequent improvement or replacement.The period of warranty begins with completion of the commissioning by the Seller’s technicians. The duration of warranty is 12 months and no more than 18months after the date of shipment.
Packing:
Fumugated wooden boxes suitable for long distance transportation on sea.
Technical description:
AUTOMATIC FOLD WRAPPING MACHINE TYPE EZZ-400
Full automatic fold& brushpacking machine for chocolate and similar product.
Product dimensions:
Length: 20-90mm
Width: 20-35mm
Height : 4-25mm
Special sizes upon request.
Output:
Around 300pcs/min, depending on product size and packing material
Special Features:
- HMI operation, PLC control
- International brand electrical components
- Integrated electrical and electronic components in the machine
- Excellent packing and very stable performance
- Modular design, remarkable operation & maintenance
- Automatic conveying belt centering
- Fast conveying belt replacement within couple of seconds
- Special designed paper feeding device easy fordouble paper wrapping (optional. innner and label paper)
- Robatech dispersion glue machine(optional)
- Strong and high accuracy spare parts for fast speed and decades of yearsstable running
- All product contacting parts are made of stainless steel or food level material
- Automatic photomark tracking system by servo motor
- Machine stops automatically once lacking product
- Central lubrication of all gears and transmission parts
- Safety protection: as per CE.
- Due to the automatic operation, several machinescan be handled by one operator
- Easy for operation, maintenance and cleaning purposes
- Fine process of every detail
- System of protection: IP 65
- Machines need to be connected with compressed air.
- Painting: if not stainless steel, then pray/gray color.
Utilities:
- Connected load: 10.2 kw
- Compressed air pressure: min.600 kPa
Wrapping material:
- Aluminum coated paper
- PET
- Aluminum
- Paper
Weight:
- 1600 kg/packing machine
- 600 kg/aligner
- 50 kg/switch cabinet
Measurements:
Packing machine: 2600 x 1310 x 1550 mm
Aligner: 3500 x 980 x 800 mm
Switch cabinet: 600 x 400 x 1200 mm
Single Twist Chocolate Top Twist Wrapping Machine
Production Standard:
1. Control system: Siemens control system, including PLC, HMI and main frequency convertor.
2. Robatech glue machine.
3. Self designed control system for non-experience operation.
4. Patent design aligning system for chocolate feeding.
5. Fast belt replacement, cleaning within 10 seconds.
6. Fast clean of whole aligning machine.
7. Standard cabling & wiring same quality as per EU standard.
8. Equipments safety: meets highest standard fromChina. For any special requirements, customer shall inform us in advance.
9. We select best material for our machines. All machines are designed and manufactured for more than 20 years of stable running.
10. Machines need to be connected with compressed air.
11. Painting: metallic sliver pray, mat surface.
12. Working environment: temperature 18-23℃, R.H.<45%
Other Commercial Terms:
PRICES:This price is based onFOB price.
DESPATCH: Within 90 days after receipt of the down payment and clear of necessary technical parameters. If any unexpected events happened such as force majeure, delivery will be postponed accordingly.
INSPECTION:Customer should come to inspection the machine’s trial running before shipment, however, the testing material such as chocolate mould, packing paper and testing samples should be supplied by customer in time, mould should be supplied in 30 days after contract date, paper and testing samples should be supplied 20 days before factory delivery.
PAYMENT TERMS:
40% of the invoice value:as down payment payable against the Proforma Invoice from the Seller by T/T;
60% of the invoice value: payable by T/T before shipment.
INSTALLATION:
Installation and commissioning by our specialized fitters. Standard: USD.100.00 per fitter per day. Time including traveling time. Exact commissioning time and number of technician will be informed by the Seller. The return air tickets with all local accommodations are at the buyer’s account.The buyer also needs find an interpreter forfitters for easy communication and supply necessary mechanic help. Relevant commissioning charge should be paid to the Seller before commissioning.
QUOTATION VALIDITY:
1 month from the date of this quotation.
Warranty:
We grant warranty for absence of defects and for assured properties and characteristics of theitemsbeing supplied.Natural wear, inappropriate handling and operation etc, are excluded from the warranty. We grant warranty after having decided freely - after due assessment of the circumstances – bysubsequent improvement or replacement.The period of warranty begins with completion of the commissioning by the Seller’s technicians. The duration of warranty is 12 months and no more than 18months after the date of shipment.
Packing:
Fumugated wooden boxes suitable for long distance transportation on sea.
Technical description:
AUTOMATIC FOLD WRAPPING MACHINE TYPE EZZ-400
Full automatic fold& brushpacking machine for chocolate and similar product.
Product dimensions:
Length: 20-90mm
Width: 20-35mm
Height : 4-25mm
Special sizes upon request.
Output:
Around 300pcs/min, depending on product size and packing material
Special Features:
- HMI operation, PLC control
- International brand electrical components
- Integrated electrical and electronic components in the machine
- Excellent packing and very stable performance
- Modular design, remarkable operation & maintenance
- Automatic conveying belt centering
- Fast conveying belt replacement within couple of seconds
- Special designed paper feeding device easy fordouble paper wrapping (optional. innner and label paper)
- Robatech dispersion glue machine(optional)
- Strong and high accuracy spare parts for fast speed and decades of yearsstable running
- All product contacting parts are made of stainless steel or food level material
- Automatic photomark tracking system by servo motor
- Machine stops automatically once lacking product
- Central lubrication of all gears and transmission parts
- Safety protection: as per CE.
- Due to the automatic operation, several machinescan be handled by one operator
- Easy for operation, maintenance and cleaning purposes
- Fine process of every detail
- System of protection: IP 65
- Machines need to be connected with compressed air.
- Painting: if not stainless steel, then pray/gray color.
Utilities:
- Connected load: 10.2 kw
- Compressed air pressure: min.600 kPa
Wrapping material:
- Aluminum coated paper
- PET
- Aluminum
- Paper
Weight:
- 1600 kg/packing machine
- 600 kg/aligner
- 50 kg/switch cabinet
Measurements:
Packing machine: 2600 x 1310 x 1550 mm
Aligner: 3500 x 980 x 800 mm
Switch cabinet: 600 x 400 x 1200 mm
Taizhou Hulk Food machinery company professionally engaged on the chocolate packing machine, candy packing machine, flow packing machine, bar line machine, confectionery kitchen and food machine production.
