Automatic Feeding Chocolate Bar Wrapping Machine(JY-L1000)

Share to:
  • JY-L1000
  • HULK
  • 8422303090
  • 8KW
Availability:
Quantity:

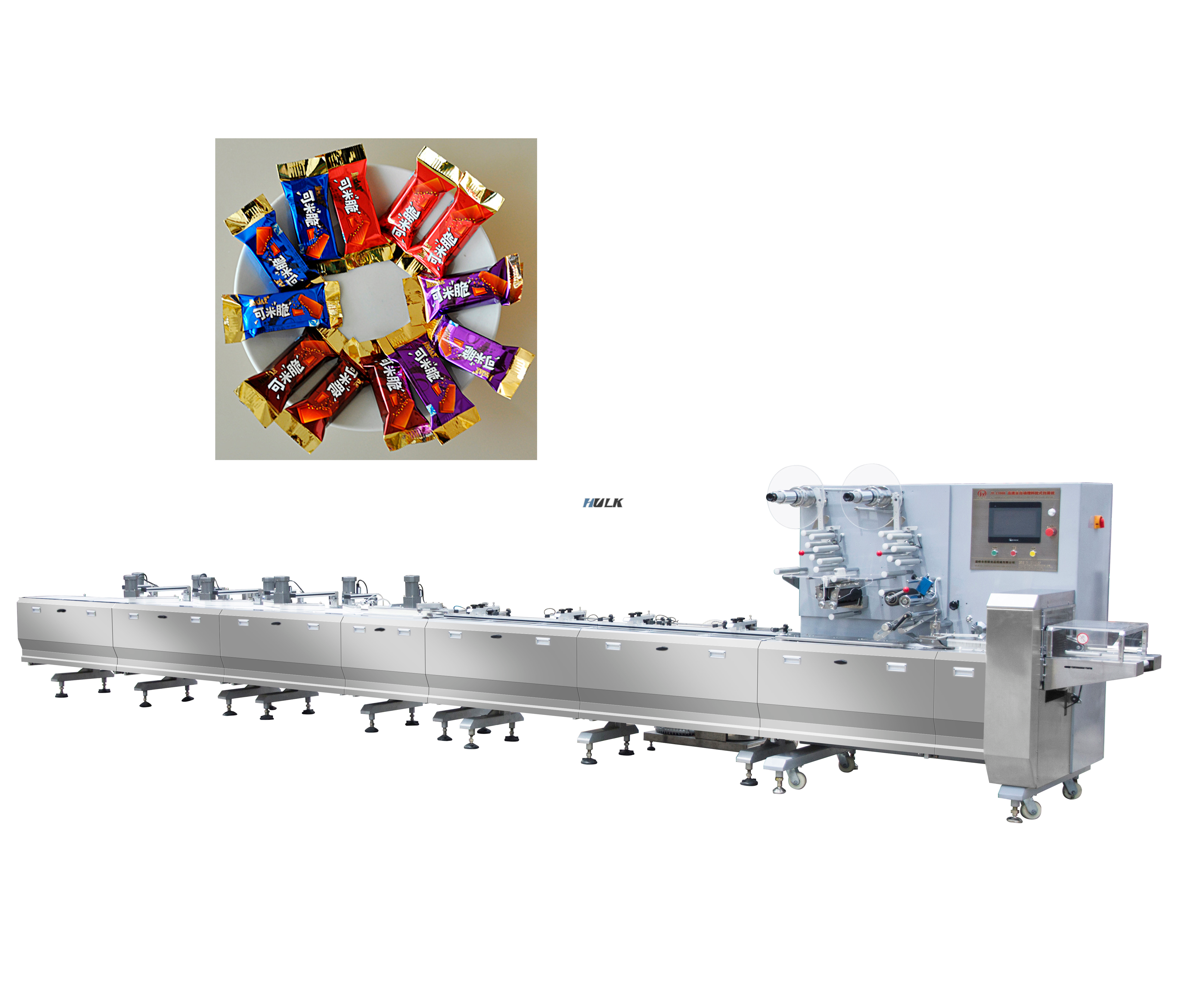

Automatic feeding Chocolate Bar Wrapping Machine(JY-L1000)

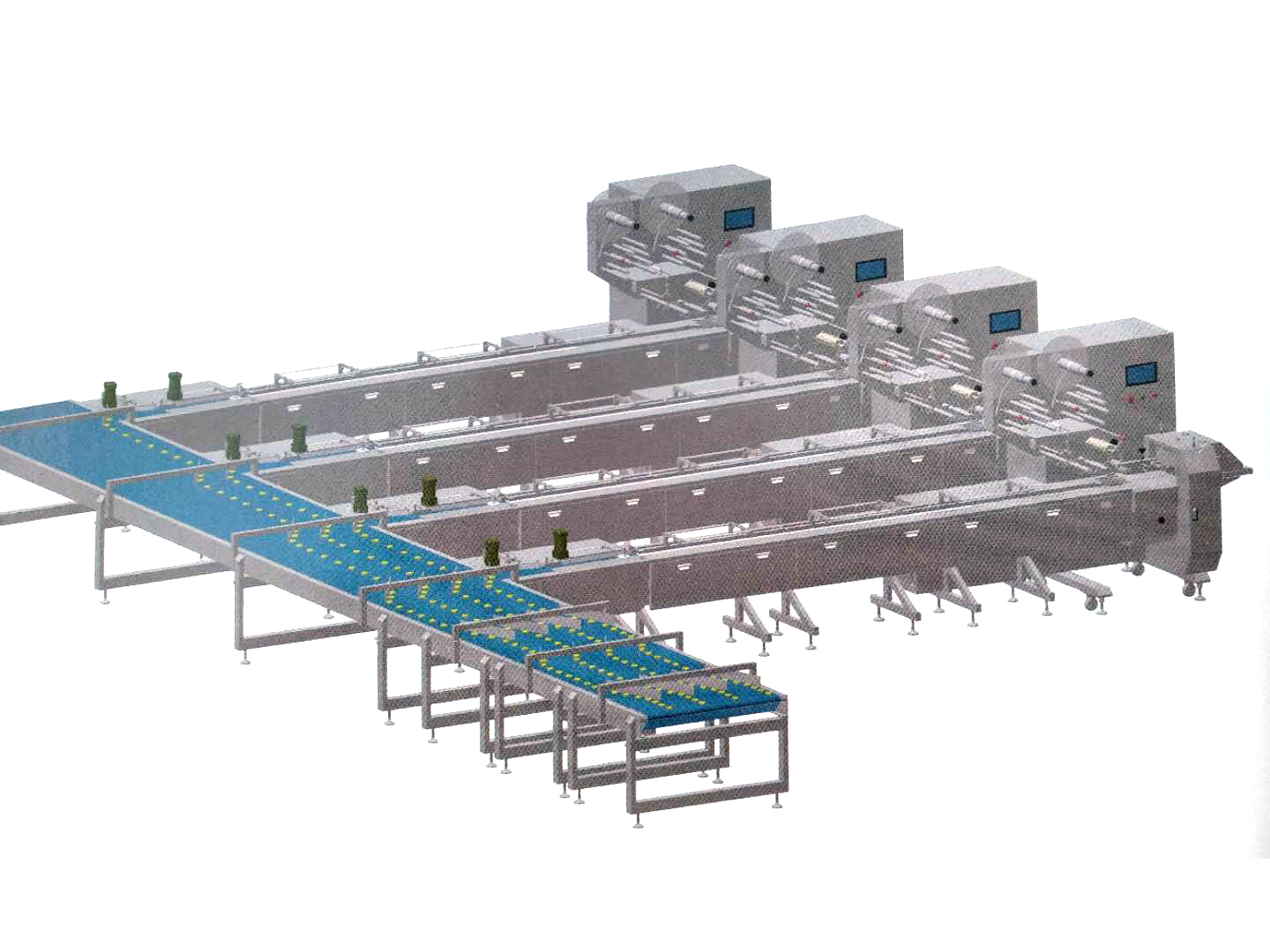

IMG_5834367841110306938237

our packing machine can do both cold sealing or heat sealing.

Finally Packed Chocolate picture as below.

201511101756000

巧克力



Main Advantage:

1.NINE  Servo motors , PLC and touch screen control.

2. Automatic feeding for the complete packing line.

3. automaticbelt speed adjustment through frequency converter,every conveyor belt is individual.

5. conveyor belt automatic deviation device through cylinder and photocell.

6. automatictemperature cooling through the air condition with two fans, air cooling or water cooling available.

7.Double paper rollers, automatic paper splicer device (paper splicer device designed according to Germany Bosch)


Technical Parameters:

Packing Speed

50-1000pcs/min

Product Dimensions

According to real product size

Total Power

9.5kw

Outside Dimensions

8900mm*1180mm*1786mm(L*W*H)

Net Weight

3300kg
