Automatic Feeding Marshmallow Packaging Machine(JY-L600)

Share to:
  • JY-L600
  • HULK
  • 8422303090
  • 7kw
Availability:
Quantity:

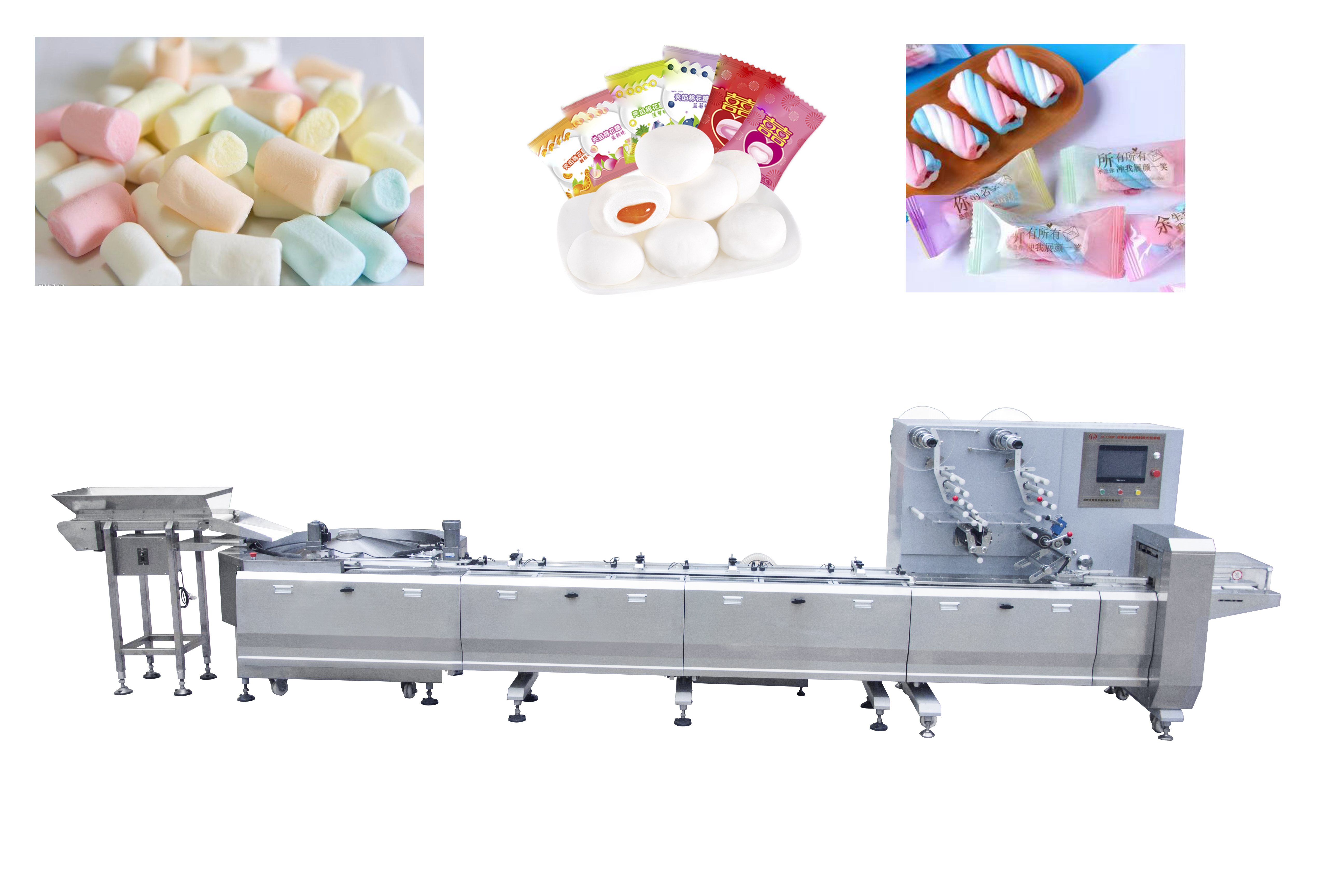

Automatic feeding Marshmallow Flow Packing Machine(JY-L600)

JY-L600B棉花糖

application: the marshmallow packaging machine uses the rotary feeding disc system. it can feed different shapes of the marshmallow, Such as half ball shape, twist shape, cylindrical shape, rectangular shape marshmallow.


this is the finish packed marshmallow picture for the reference.

photobank (5)

photobank微信图片_20220520154222

Main Advantage:

1.NINE  Servo motors, PLC Control and touch screen display.

2. Automatic feeding for the complete packing line.

3.Rotary Feeding, efficient, reduce the cost and save the space.

4.Double paper rollers, automatic paper splicer device (paper splicer device designed according to Germany Bosch)

5.Equips with the fan to positionize the product ensure pusher exactly push the product to sealing area.


Technical Parameters:

Packing Speed

50-800pcs/min

Product Dimensions

According to real product size

Total Power

7.3kw

Outside Dimensions

5800mm*1400mm*1600mm(L*W*H)

Net Weight

3000kg

Power Source

400V;50HZ,3phase(can customized)



Machine Details Structure as below:

1.Rotary Disc Feeding, efficient and save the space

rotary disc feeding system

2.Totally: six section of separating belt, controlled by the servo motors, intelligent speed adjustment.

IMG_5863

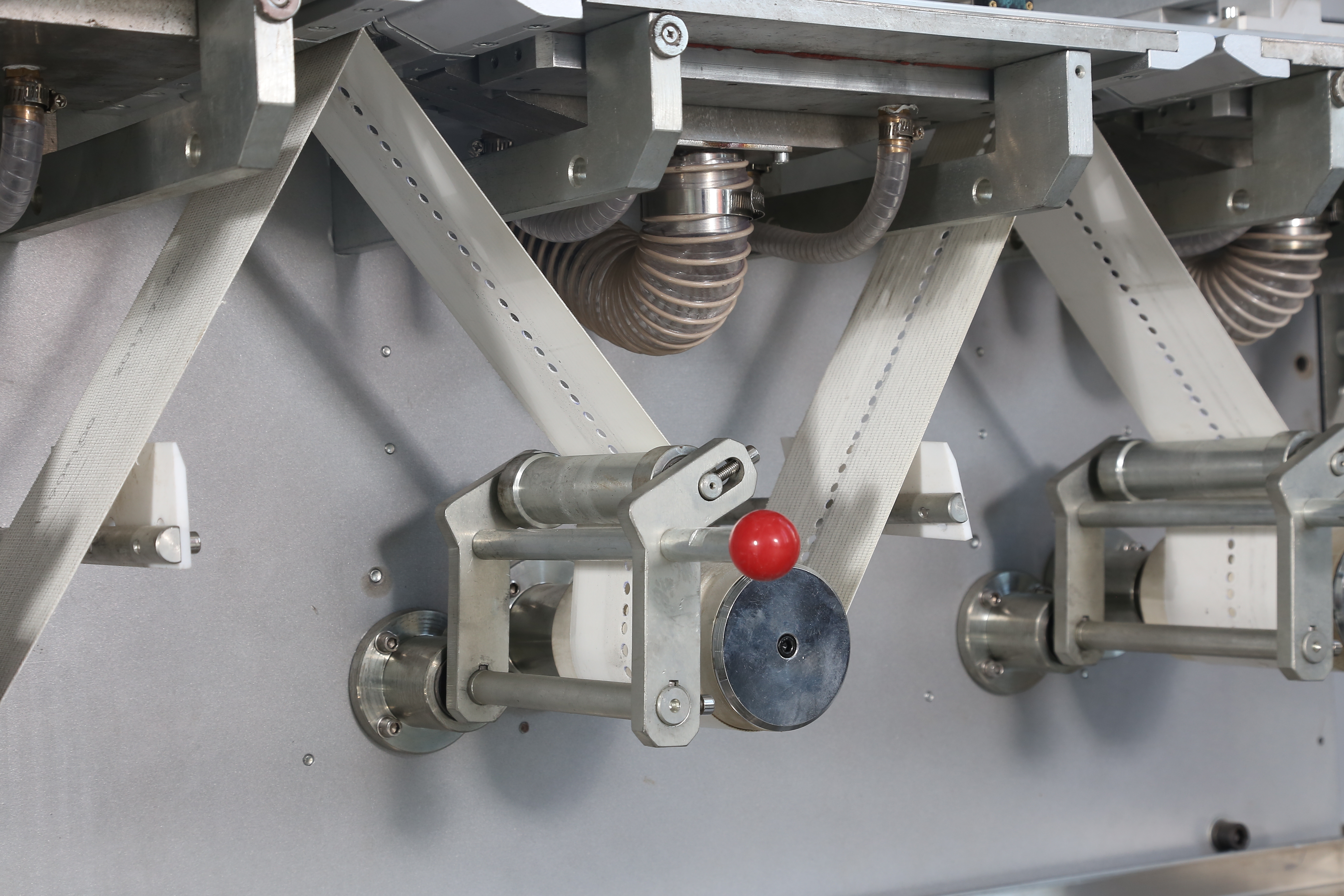

3.teflon scraper to avoid the candy pcs stick to the PU belt

IMG_5867

Double Paper rollers structure and fast automatic paper splicer designed according to Germany Bosch as below:

double electric cabinets,separated mechanical transmission and electric parts






Double Layers Electrical Cabinets (Mechanical and Electrical parts are separated).


double paper rollers,automatic splicer





Payment Terms:40% T/T in Advanced, the balance should be paid before delivery.

Delivery time:60 days after the deposit.

Package: Seaworthy Wooden Case.

Shipping by Sea.




Guarantee:

1.One year guarantee for the quality, if components are damaged naturally, we will replace it freely. If Manually damaged, the clients

Response for the costs.

2.provide the complete installation,debugging,technology support and staff training.

3.permanent accessory parts supply only to our clients for competitive price, quick response for the after-sales service.


Installation:

If the buyer need us to send engineer for installation, the

Buyer should pay for the round ticket, hotel and salary of usd80 per day for the engineer.




This is our marshmallow packaging machine. it uses the rotary disc to feed the marshmallow.

the packaging machine can pack different shapes of marshmallow.

JY-L600B棉花糖

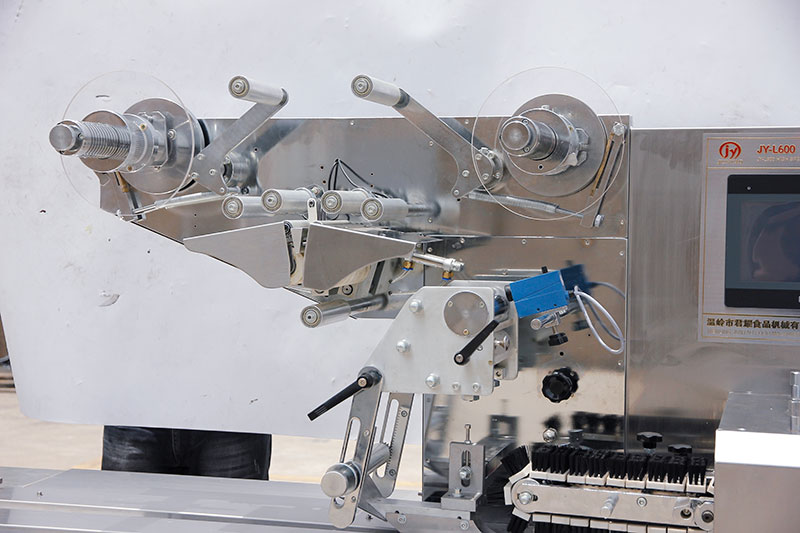

the marshmallow packaging machine has two paper rollers and automatic splicer device.

it saves the time to change the marshmallow wrapping film.  there is no need to stop the machine to change the marshmallow wrapping film.

double paper rollers,auto splicer device

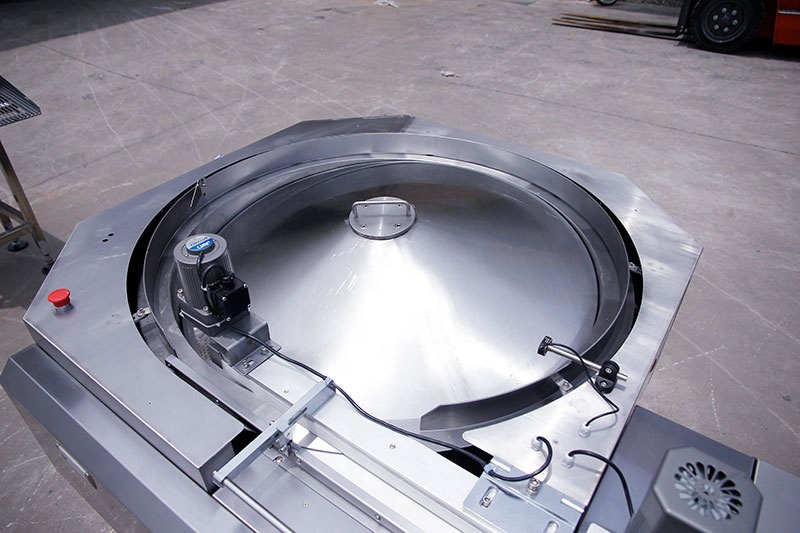

By rotary feeding disc structure, it saves the marshmallow producer packing workshop space and make the feeding efficient. like half ball shape marshmallow, we can turn it around by the feeding disc.

 rotary disc feeding system

through the  six servo motors feeding belt design, it infeed the marshmallow to packing machine sealing area smoothly.

servo motors drive the belt

IMG_5867

all our factory workshop has the modern management on marshmallow packing machine assembling and machine test before delivery. its a guarantee to most of the marshmallow food producers when they order our machines.

DSC_9588

we have the 30000m2 own land to build the packing machine workshop and 100+ employees.

It's a deep trust from marshmallow client to buy our machine for long terms cooperation and long after-sales service support.

DSC_9536
