Swiss Roll Egg Roll Wafer Roll Wrapping Packaging machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • JY-ZB400

  • HULK

  • 8422303090

  • 4KW

Availability:
Quantity:
Inquire Add to Basket

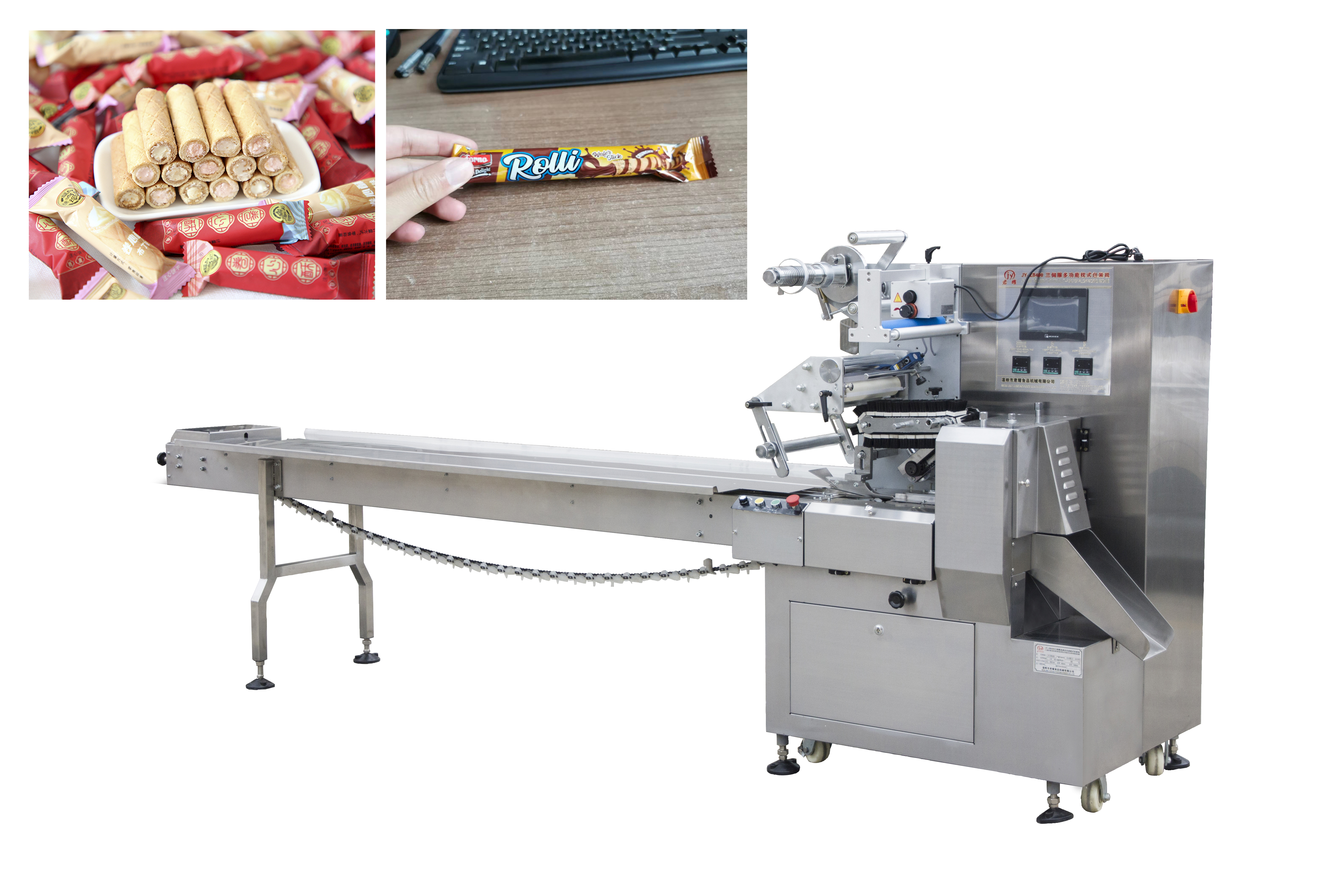

Egg Roll, Swiss Roll, Wafer Roll Packaging Machine(JY-ZB400)

JY-ZB400威化卷

Feature:

1.       Three Servo Motors Control,low maintenance ,long service life and rapid reaction.

2.       intelligent temperature controller system, displayed easily, easy for setting, low rate of maintenance..

3.       Reasonable structure, stable running with high quality.


Feeding system:

the egg roll, wafer roll,swiss roll are the round shape. the packing machine uses the hopper elevating system to automatic infeed the products to packaging machine.


Technical parameters:

Model

JY-ZB400

Packing speed

50-400grains/min

Paper roller width

300mm

Film width

MAX 280mm

Sealing Jaw Width

180mm

Product width

60-130mm

Finished bag size

100-250mm

Total Power

5kw

Dimensions

3800*990*1570mm

Net weight

950kg

Voltage

220V/380V(customized)

Wrapping film

OPP,CPP,PET,Aluminium plating film, any   hot sealing film




this is our packaging machine for egg roll, wafer roll, swiss roll and similar products.

JY-ZB400威化卷

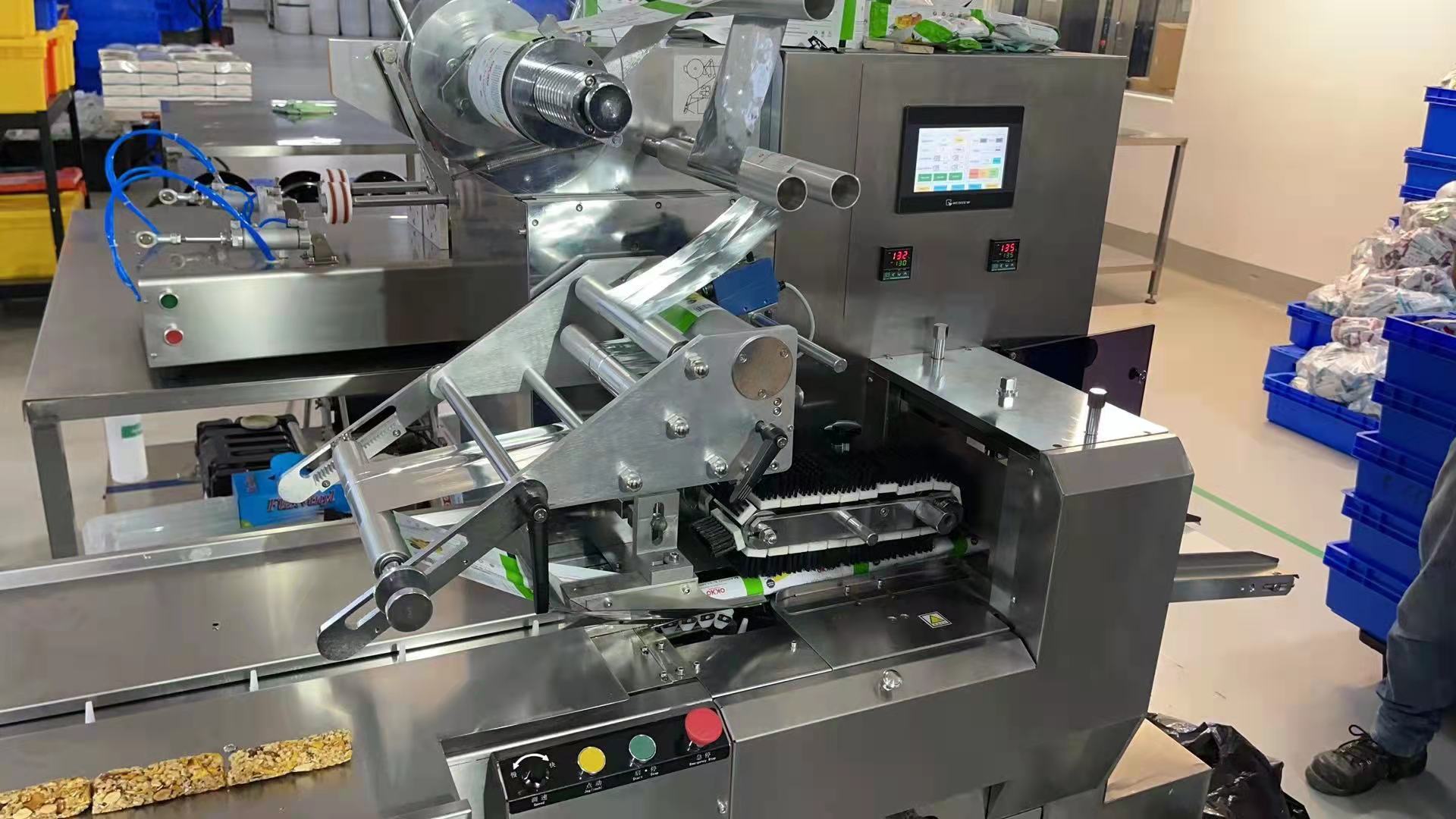

packing machine operation structure are simple and convenient. Touch screen display, easy installation for the egg roll wrapping film.

微信图片_20220305102027

the feeding system uses the hopper elevator to elevate the wafer roll, egg roll or swiss roll to packaging machine automatically.

微信图片_20210126151519

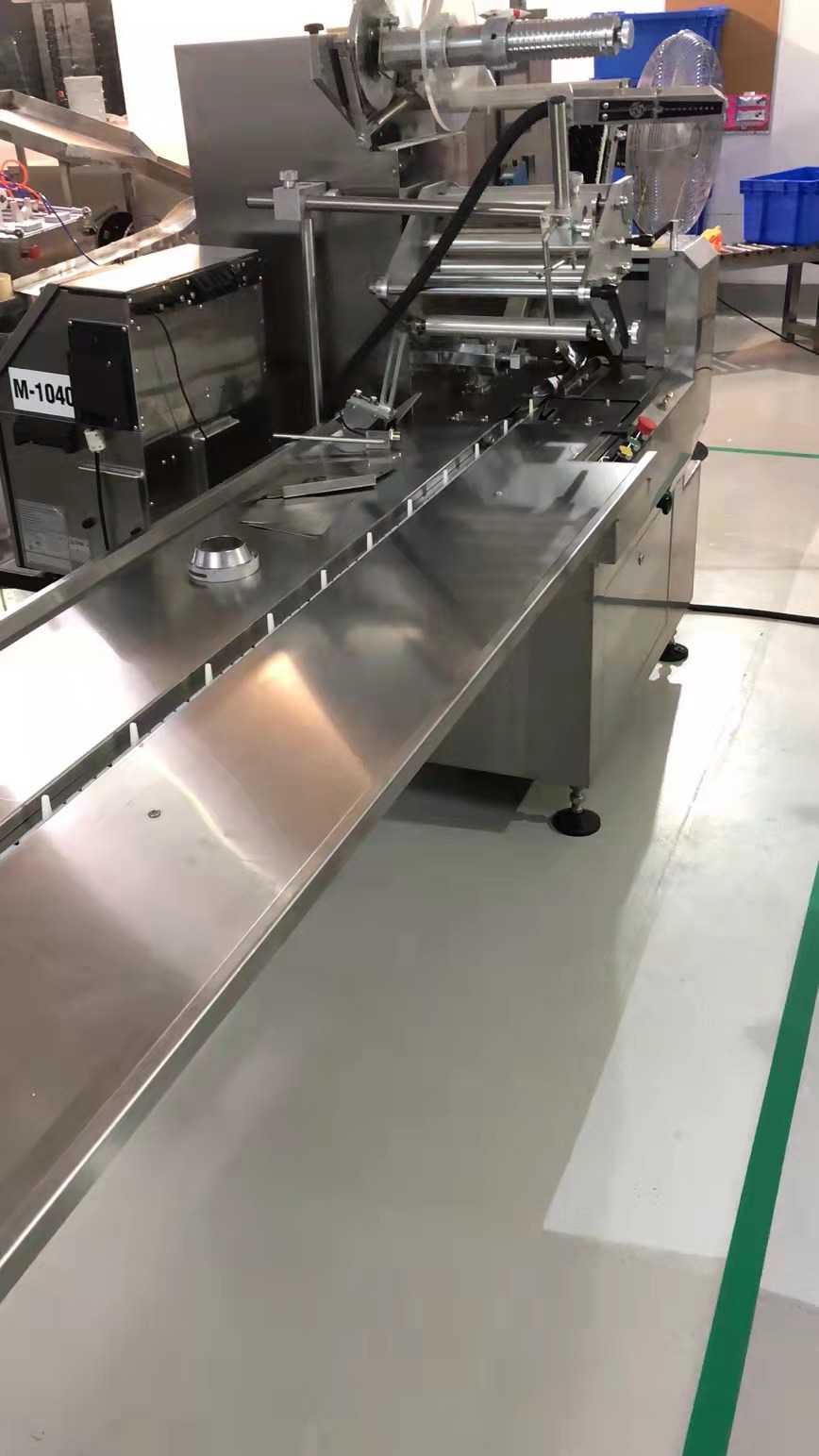

Compact Pusher Structure is convenient for packing machin operation and egg roll pieces cleaning.

微信图片_20220305102022

Fixed Bag Forming Box is more stable for egg roll, wafer roll, swiss roll packaging.

微信图片_20220305102034

Machine appearance is compact and good outer appearance.

微信图片_20220305102031

this is our workshop condition. Reasonable assembly workshop provides the high quality egg roller, swiss roll, wafer packaging machine

微信图片_20220530173301

微信图片_20220530173306

Our manufacturing land has 30000m2 for production and office. we constantly upgrades our packing technology to serve more egg roll, swiss roll, wafer roll producers.

DSC_9536
