High Speed Automatic Toffee Packing Machine(JY-ZB1200)

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • JY-ZB1200

  • HULK

  • 8422303090

  • 5KW

Availability:
Quantity:

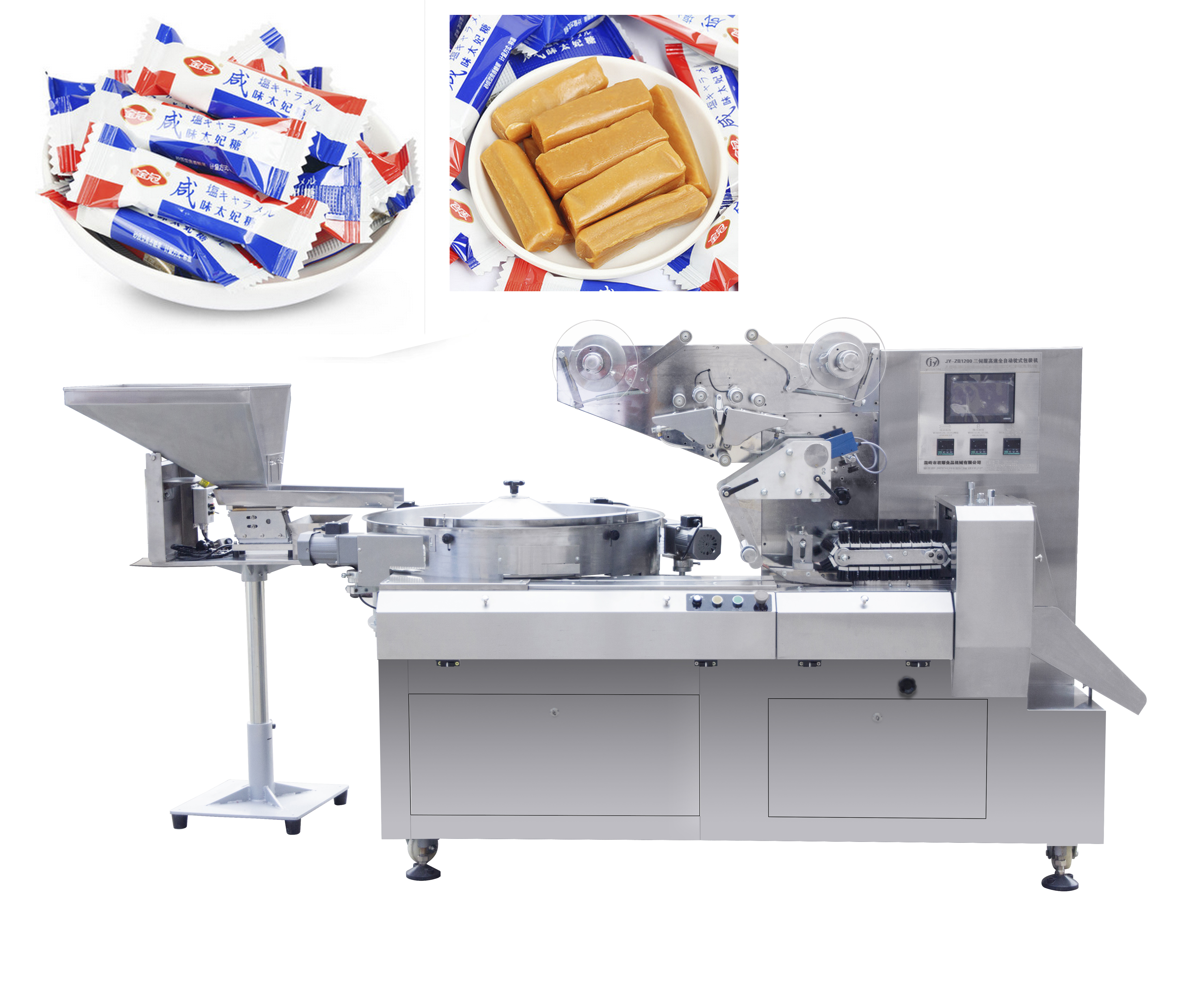

High Speed Pillow Type Toffee Packing Machine

JY-ZB1200 toffee candy

Applications
This Pillow Packing Machine is widely used as below:
Food industry: Toffee,Caramel Candy, Gum candy, Soft Gummy Candy, Toffee, Hard candy, scotch, etc.
Medical catalogue: The pills with the shape of spherical, ellipse, waist round, block, square, etc.

Main Features

-Three Servo Motors Control, Touch Screen Display.

-Ultra-big feeding Plate, Double Paper Roller Automatic splicer device.
-Automatic photocell tracking device, High precision cutting, and flexible for size adjustment.
-Touch screen display, r with steady performance, touch screen display.







Technical Parameters

packing   speed

 50-1200   bags/min

Net   weight

 1245KG

Finished   bag size

 50mm-80mm

Outside   dimensions

 2650mm×1200mm×1700mm

Total   power

 4.5KW

voltage

 380V,   50HZ(can be customized)

the   packing shape of product

 Round   slice, ball shape, ellipse, waist round shape, cylindrical, block etc

adopted   product

 hard   candy, soft candy, toffee, center filled candy, scotch, pill,chewing gum.

film

 OPP,   CPP, aluminum plastic film and other hot-sealing material, etc

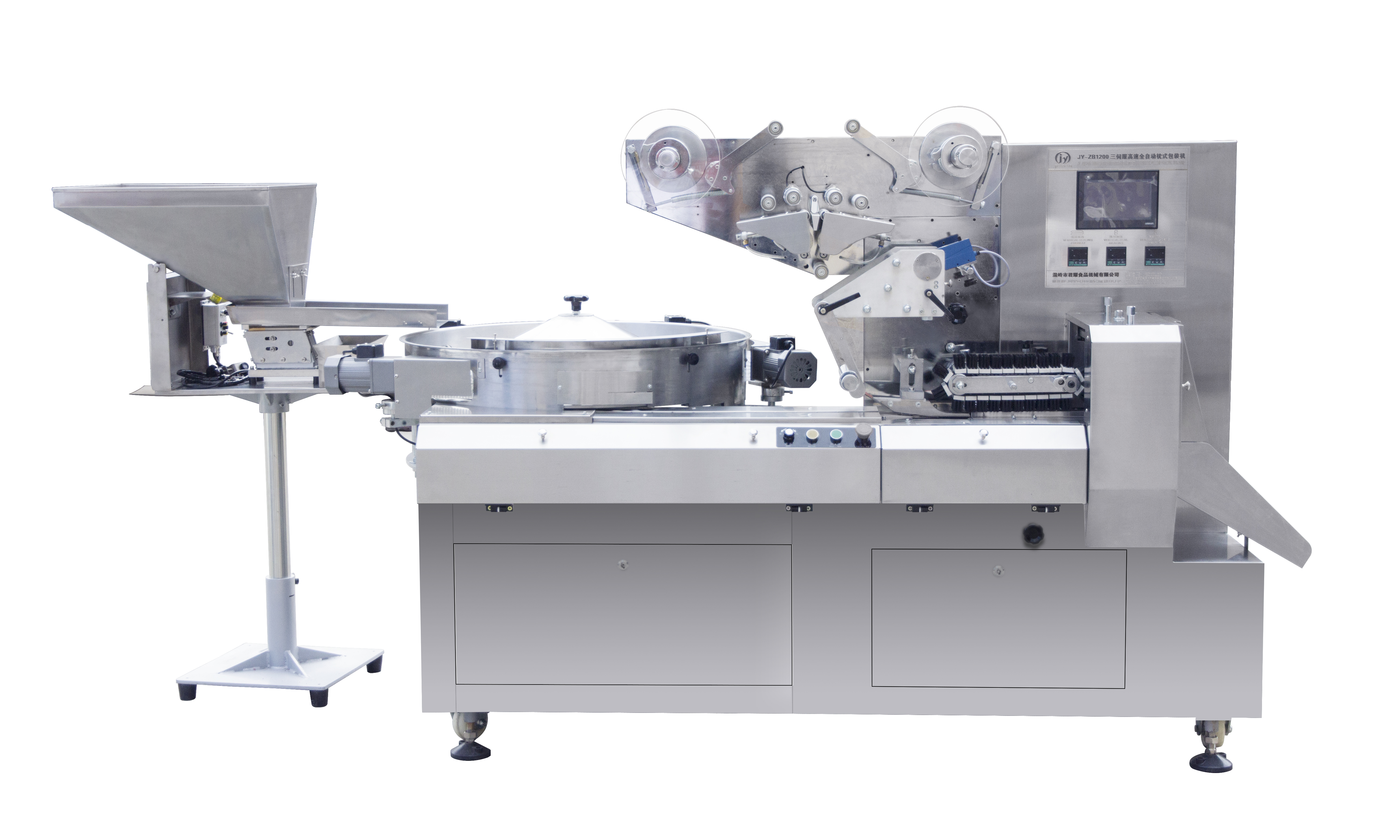

This is our complete picture for our packaging machine on toffee. it equips with the auto-vibrator to infeed.

JY-ZB1200


Jy-zb1200 toffee packaging machine has Double Paper Rollers and automatic Splicer device. the machine structure picture is as below.

double paper rollers,auto splicer device

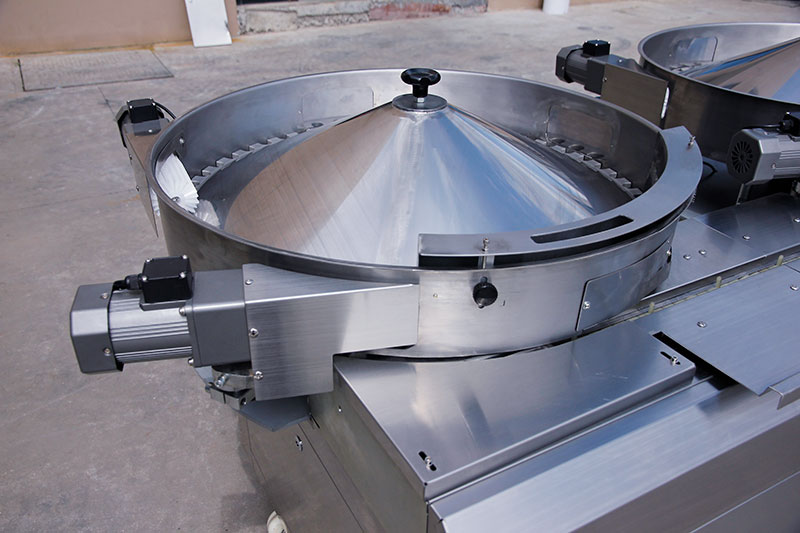

Toffee Candy Feeding Disc Picture is showed as below. All the toffee candy shape and size can be customized.

pillow packing machine(JY-ZB1200) (2)

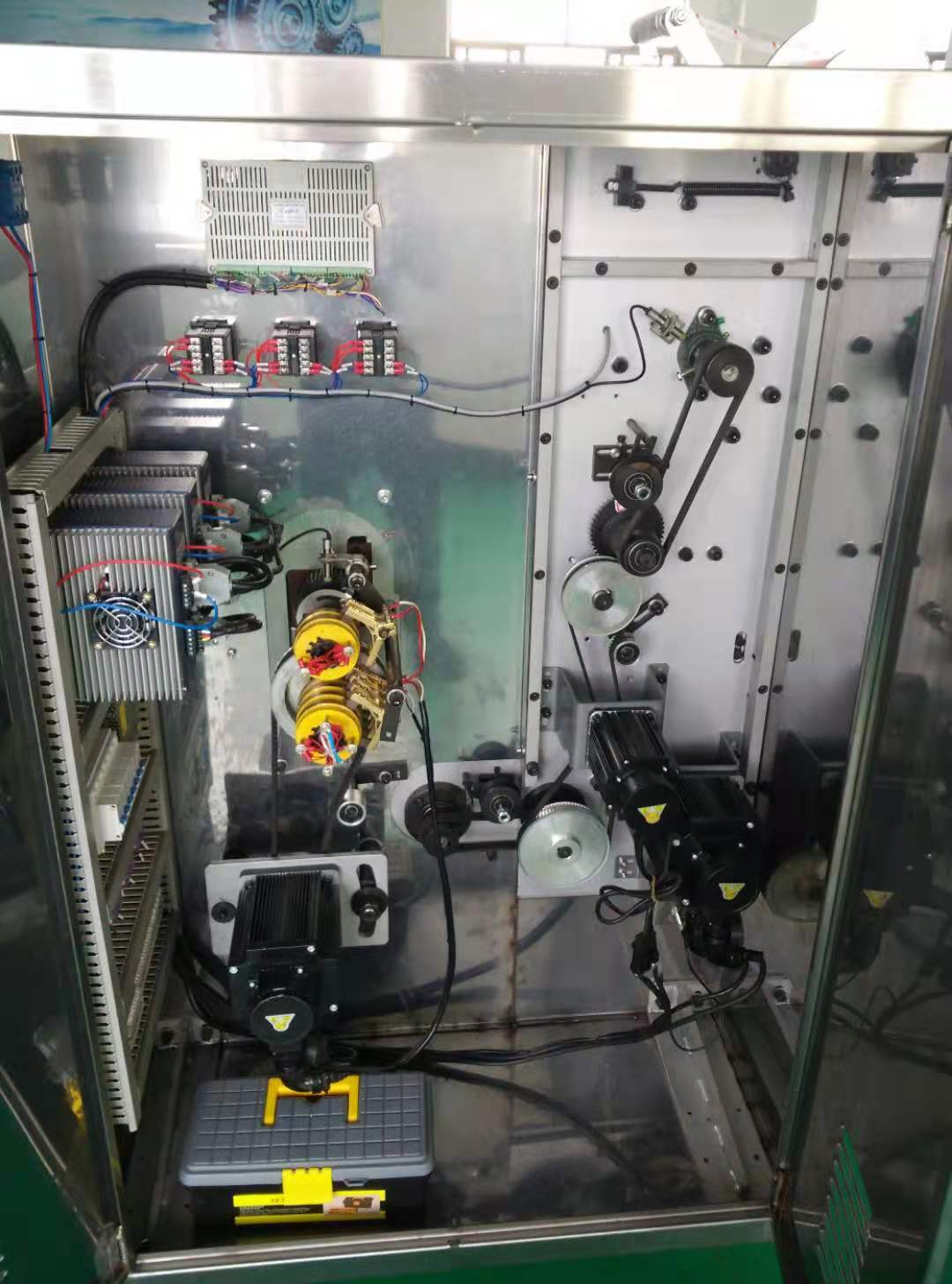

Our toffee packing machine uses three servo motors control. all the transmission is drived by the synchronous belt.

The toffee wrapping machine maintenance cost is low and simple. it saves the maintenance cost for the toffee package in the long term.

three servo motors system

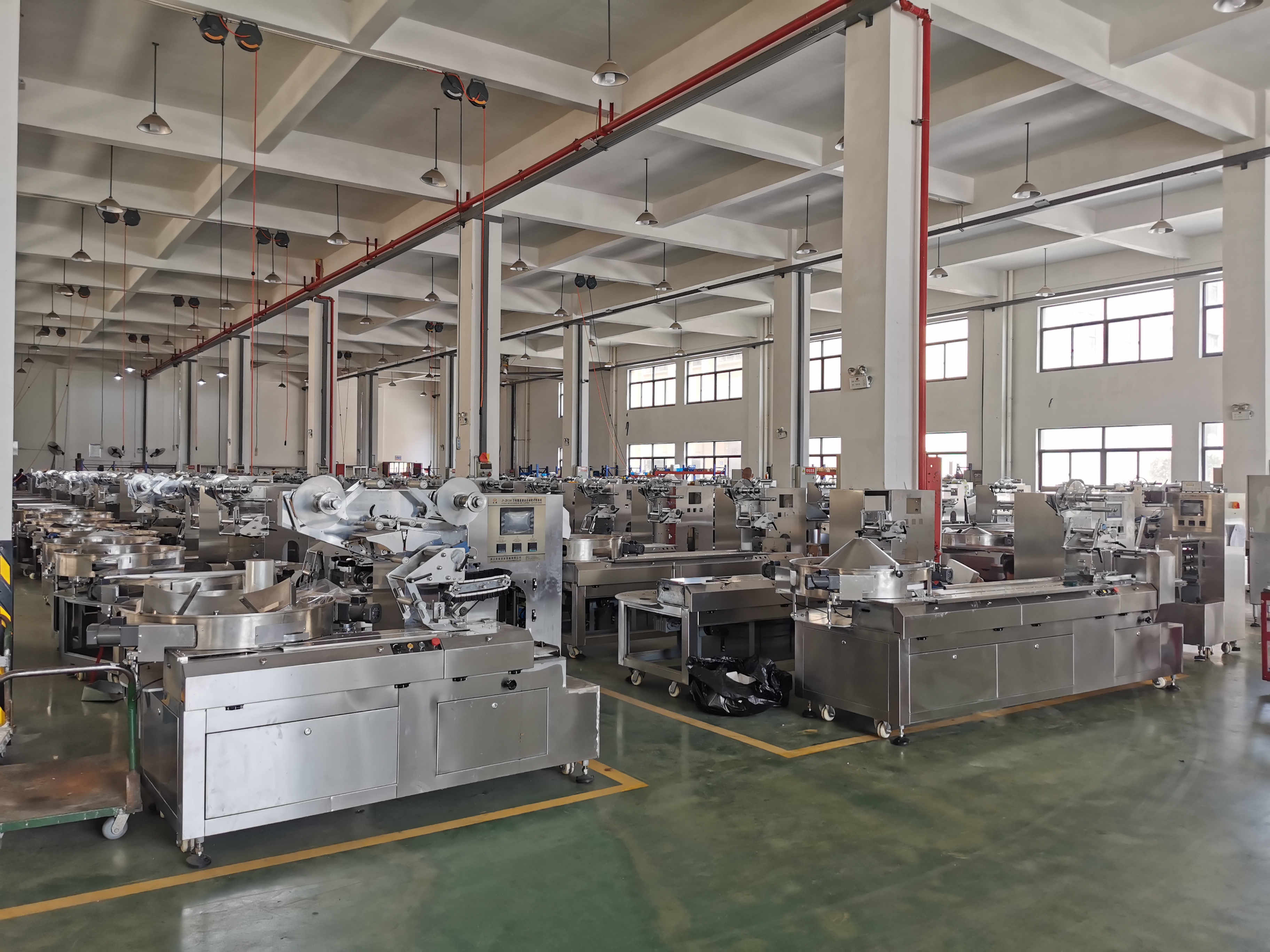

this is our Toffee Packing Machine workshop

微信图片_20220530173115

微信图片_20220530173133

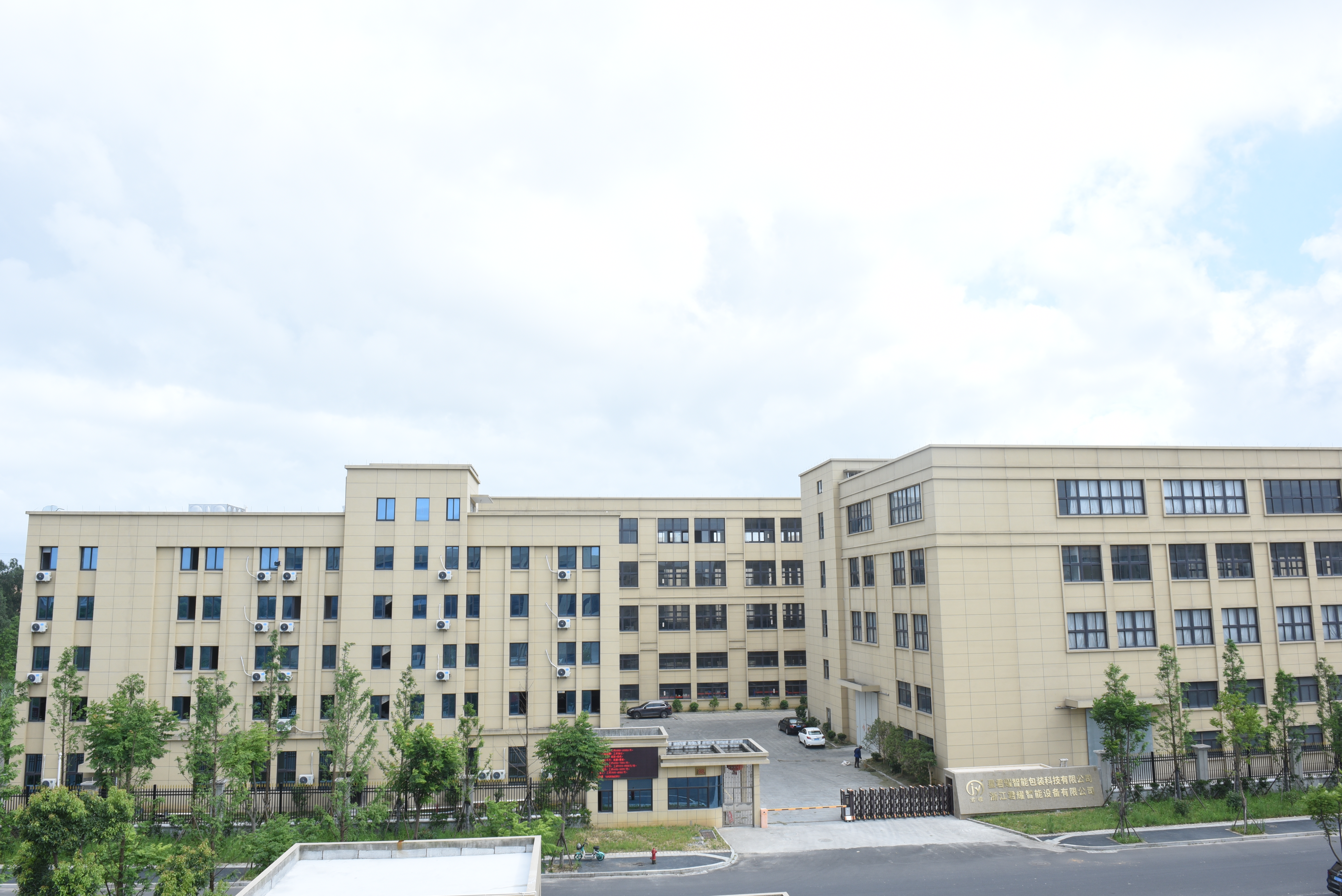

This is our factory condition. we have 30000m2 production area and 100+ employees.

our company business is basing on long term, stable cooperation, quality first principal.

DSC_9536
