Automatic Feeding Lollipop Packing Machine(JY-ZB900) Automatic Feeding Lollipop Packing Machine(JY-ZB900)
Automatic Feeding Lollipop Packing Machine(JY-ZB900) Automatic Feeding Lollipop Packing Machine(JY-ZB900)
Automatic Feeding Lollipop Packing Machine(JY-ZB900) Automatic Feeding Lollipop Packing Machine(JY-ZB900)
Automatic Feeding Lollipop Packing Machine(JY-ZB900) Automatic Feeding Lollipop Packing Machine(JY-ZB900)
Automatic Feeding Lollipop Packing Machine(JY-ZB900) Automatic Feeding Lollipop Packing Machine(JY-ZB900)

loading

Automatic Feeding Lollipop Packing Machine(JY-ZB900)

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

  • JY-ZB900

  • HULK

  • 8422303090

  • 5KW

Availability:
Quantity:
Inquire Add to Basket

High Speed Flow Type Lollipop Packing Machine

JY-ZB900 棒棒糖

Finished Lollipop packed picture as below. it can pack different shape lollipop like flat lollipop, ball lollipop, heart shape lollipop etc.

photobank (3)微信图片_20210622203032

微信图片_202106222030321微信图片_20220601082710


Applications
This Packing Machine is widely used as below:
Food industry: Packaging on Lollipop, Gum candy, Soft Gummy Candy, Toffee, Hard candy, scotch, etc.
Medical catalogue: The pills with the shape of spherical, ellipse, waist round, block, square, etc.



Main Features

-Three Servo Motors Control, Touch Screen Display.

-Ultra-big feeding Plate, Single Paper Roller Automatic splicer device.
-Automatic photocell tracking device, High precision cutting, and flexible for size adjustment.
-Touch screen display, r with steady performance, touch screen display.



Technical Parameters

packing   speed

50-600   bags/min

Net   weight

1245KG

Finished   bag size

50mm-80mm

Outside   dimensions

2650mm×1200mm×1700mm

Total   power

4.5KW

voltage

380V,   50HZ(can be customized)

the   packing shape of product

Round   slice, ball shape, ellipse, waist round shape, cylindrical, block etc

adopted   product

Lollipop, hard   candy, soft candy, toffee, center filled candy, scotch, pill,chewing gum.

film

OPP,   CPP, aluminum plastic film and other hot-sealing material, etc

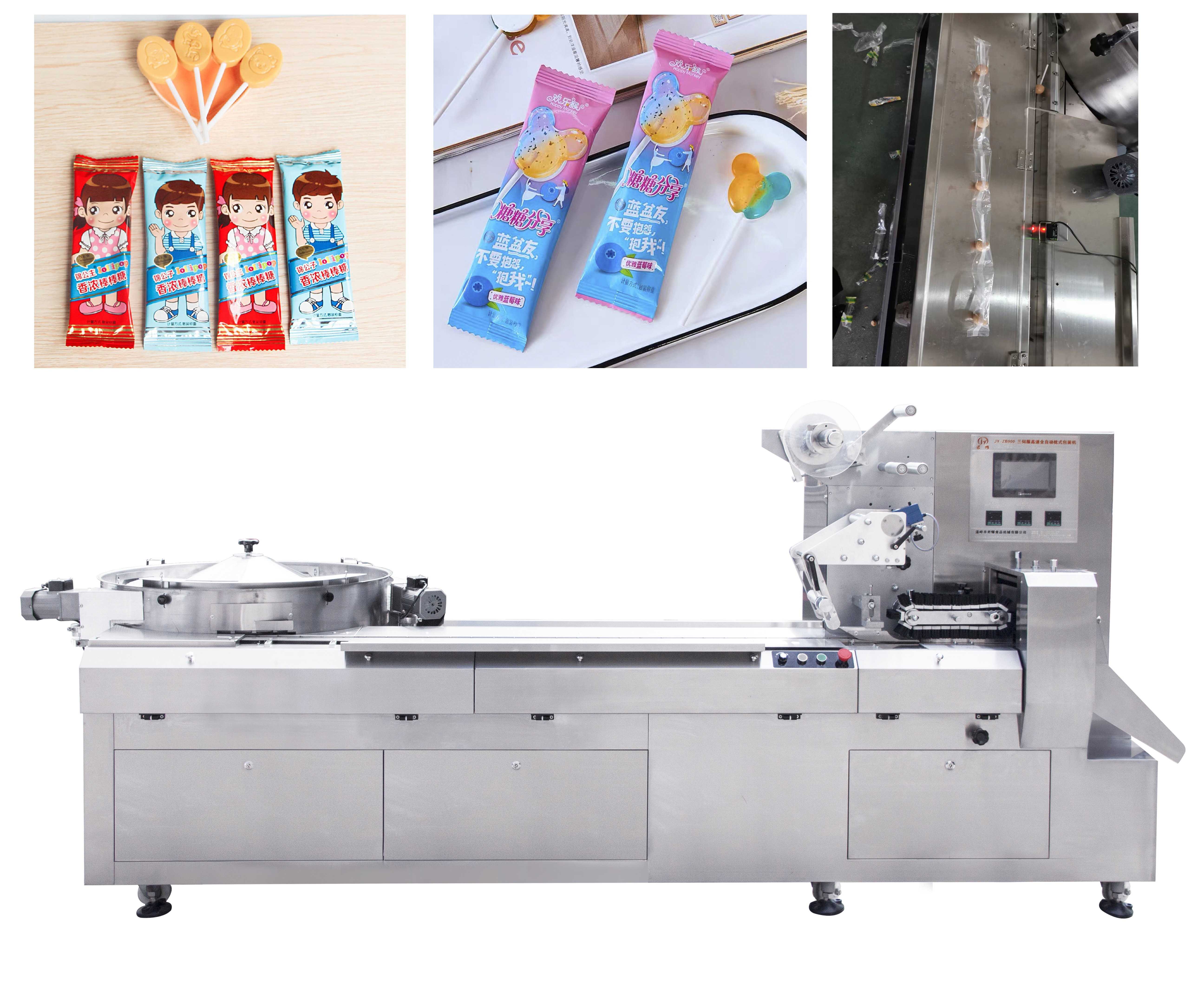

Lollipop Packaging Machine Structure is as below.JY-ZB900 棒棒糖

Optional Function for the lollipop package such as auto cut chain bag device.

DSC_9636

Automatic Lollipop Feed with no empty package function is optional for ball shape lollipop.

DSC_9640



Compact Paper Roller film structure design makes the paper roll install conveniently.

The lollipop packaging machine users can operate all the parameters in the touch screen.

pillow packing machine(JY-ZB400) (3)

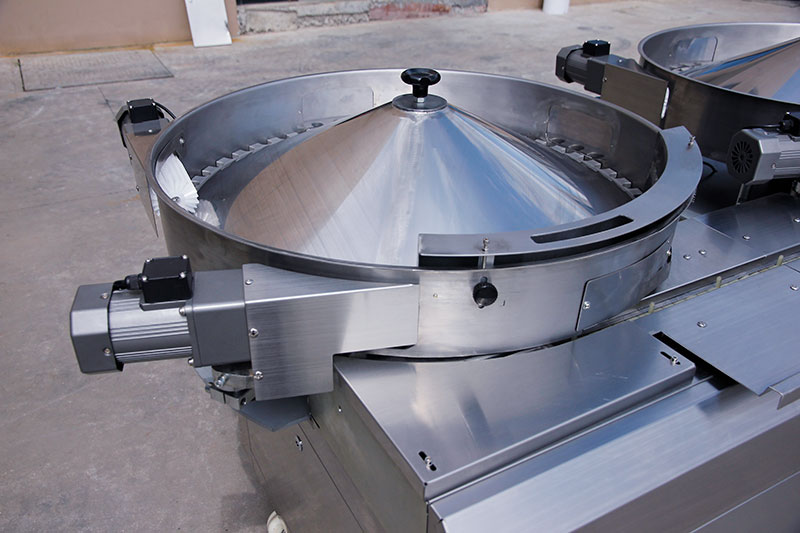

Ultra-big feeding disc design to keep the lollipop feeding smoothly.

pillow packing machine(JY-ZB1200) (2)

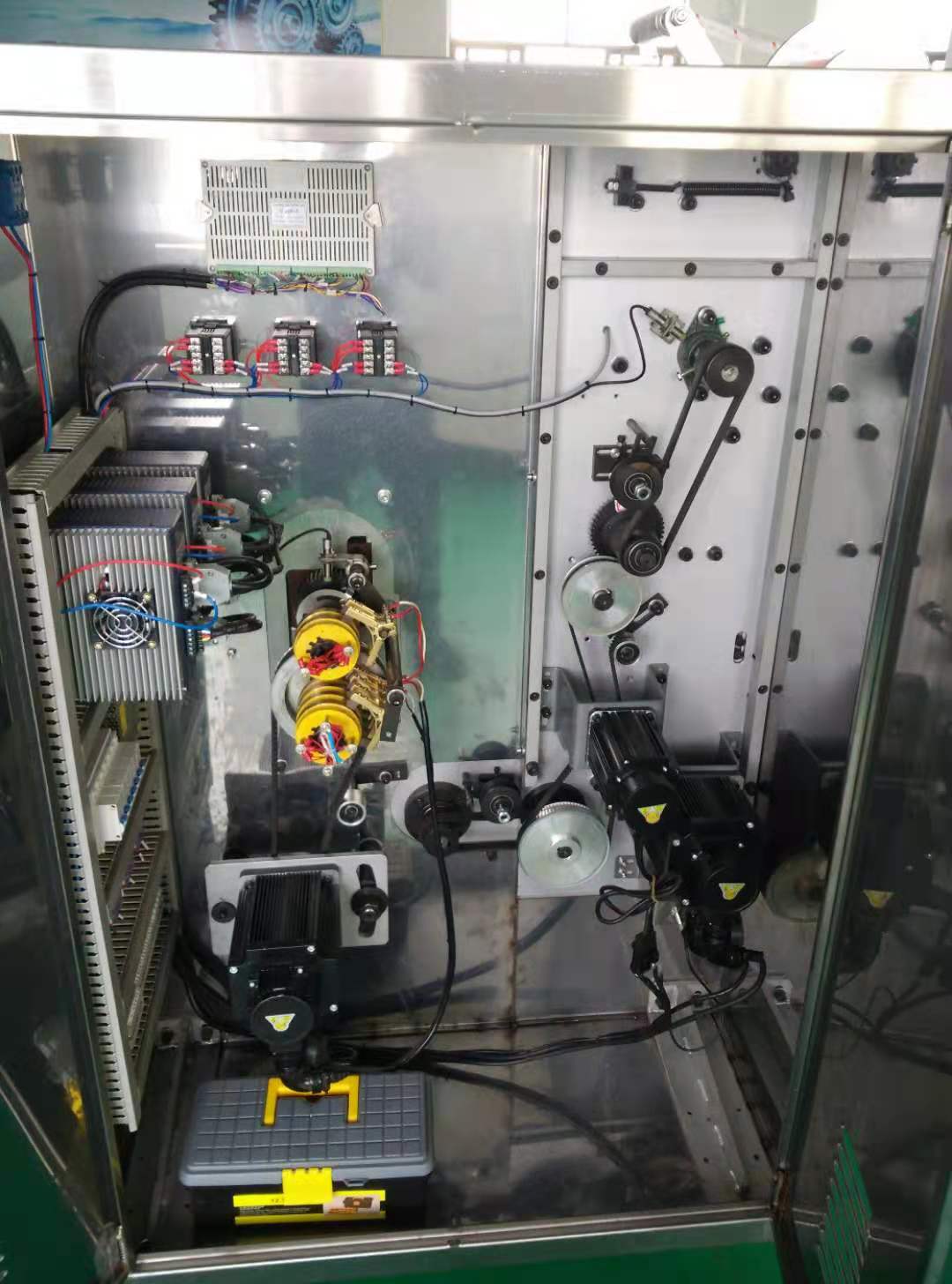

Packaging machine is drived by three servo motors. All the transmissions are drived by the synchronous belt connection. the packaging machine is low maintenance costs and stable working performance to lollipop users.

three servo motors system

Modern Factory assembly condition and professional lollipop wrapping machine designing technology.

Our packaging machine builds a long term cooperation relationship with lollipop manufacturers.

微信图片_20220530173309

DSC_9631

30000m2 factory land and 100+ employees manufactured the packaging machine for lollipop,candy,chocolate, bar products, commodity, food etc. the professional team is the guarantee for the long term cooperation with more lollipop candy producers.

DSC_9536
