High Speed Chocolate Packing Machine(JY-L1000)

Share to:
  • JY-L1000
  • HULK
  • 8422303090
  • 5KW
Availability:
Quantity:

 Automatic feeding Chocolate Packing Machine(JY-L1000)


JY-L1000巧克力

Application:

our chocolate wrapping machine can pack chocolate products, chocolate enrobing product, such as energy bar, wafer bar, snack bar etc. the packing machine can connect with the chocolate moulding line directly by the Belt conveyor. the machine is multi-function to pack small chocolate or big size chocolate.


Finish Chocolate Packed Product Picture. Chocolate wrapping film Cold Sealing Or Hot Sealing Both are available.

QQ图片20210705162119巧克力


Main Advantage:

1.NINE  Servo motors , PLC and touch screen control.

2. Automatic feeding for the complete packing line.

3. automaticbelt speed adjustment through frequency converter,every conveyor belt is individual.

5. conveyor belt automatic deviation device through cylinder and photocell.

6. automatictemperature cooling through the air condition with two fans, air cooling or water cooling available.

7.Double paper rollers, automatic paper splicer device (paper splicer device designed according to Germany Bosch)


Technical Parameters:

Packing Speed

50-1000pcs/min

Product Dimensions

According to real product size

Total Power

9.5kw

Outside Dimensions

8900mm*1180mm*1786mm(L*W*H)

Net Weight

3300kg


Delivery time:2month.

Shipment:By sea


Chocolate packaging machine uses the 304 stainless steel materials to ensure the high food hygiene requirement to

the chocolate producers

IMG_5834

During the chocolate cleaning for Pu feeding belt, our chocolate packing machine belt assembly structure are very efficient.it's convenient and easy to discharge or reload.

IMG_5860

IMG_5865

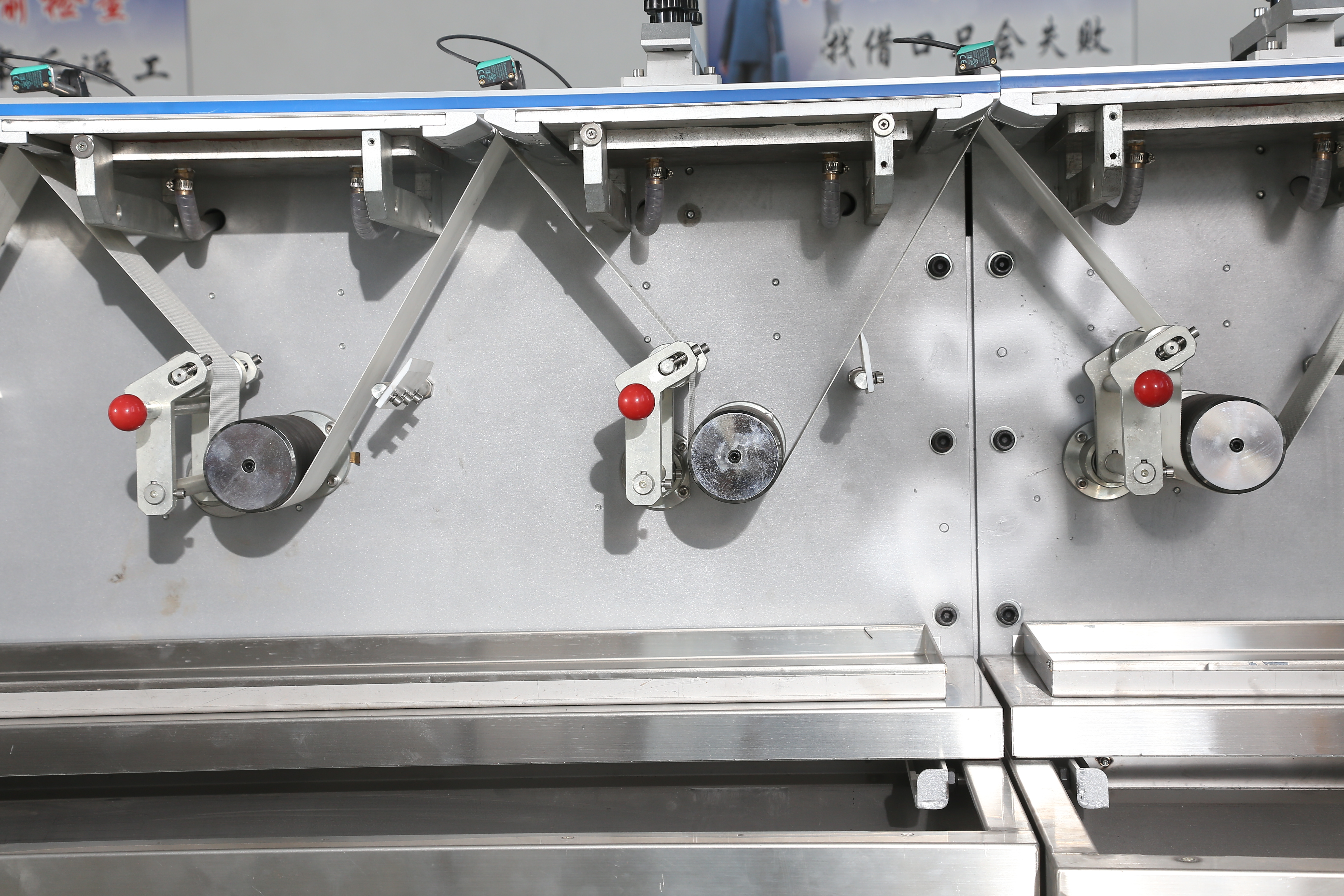

the machine adopts the Double paper roller and automatic splicer design.When one reel chocolate film finishes, it will automatic connects second chocolate film. it saves the time to change the chocolate wrapping film.

IMG_5837

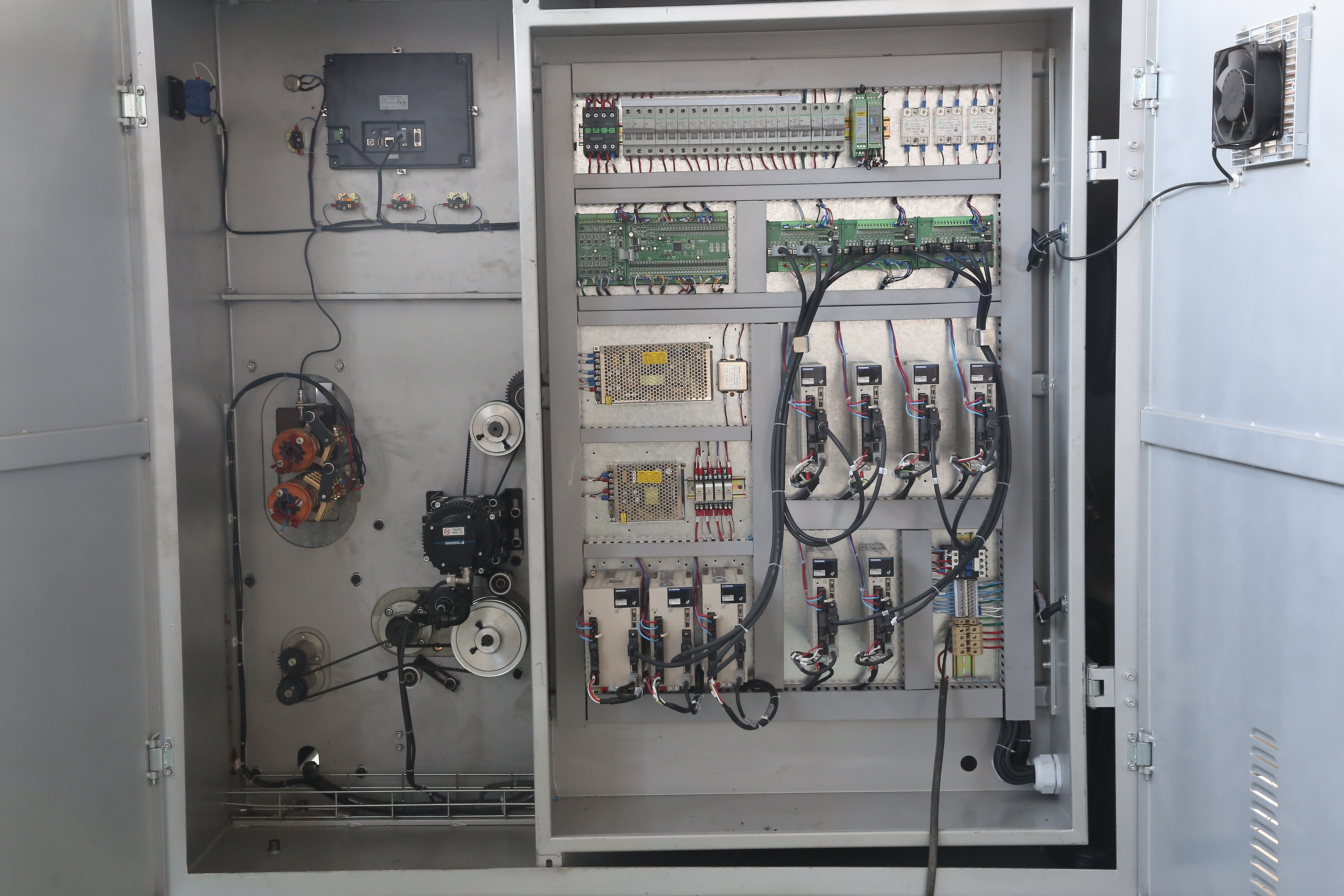

Chocolate packing machine uses double electric box design. the mechanical tranmission and electric parts are separated. it meets the europe safety requirement on packaging machine. chocolate packing machine are safety to meet the chocolate manufacturer requirement. IMG_5875

IMG_5884

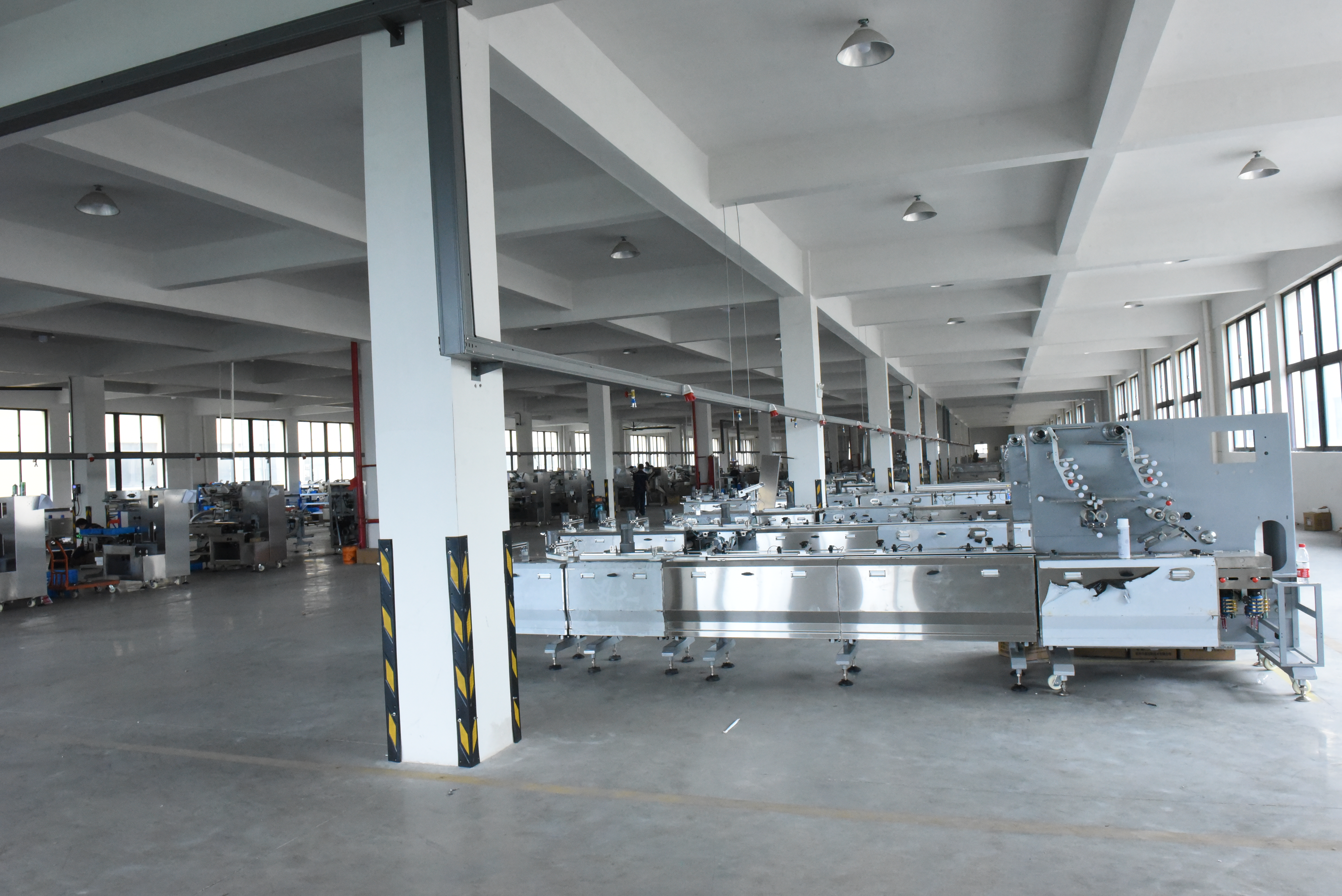

Our Factory manufactured the chocolate packaging machine for more than ten years. We are located in zhejiang taizhou province. our province focus on the manufacturing. Servo motors and packing machine technology are leading condition in china. welcome to more chocolate producers contact us. we will provide all the customized service for the chocolate packing solution.this is our factory condition picture. we have the 30000m2 manufacturing area and 100+ employees. we looking forward to cooperating with more chocolate and food producers.

DSC_9536

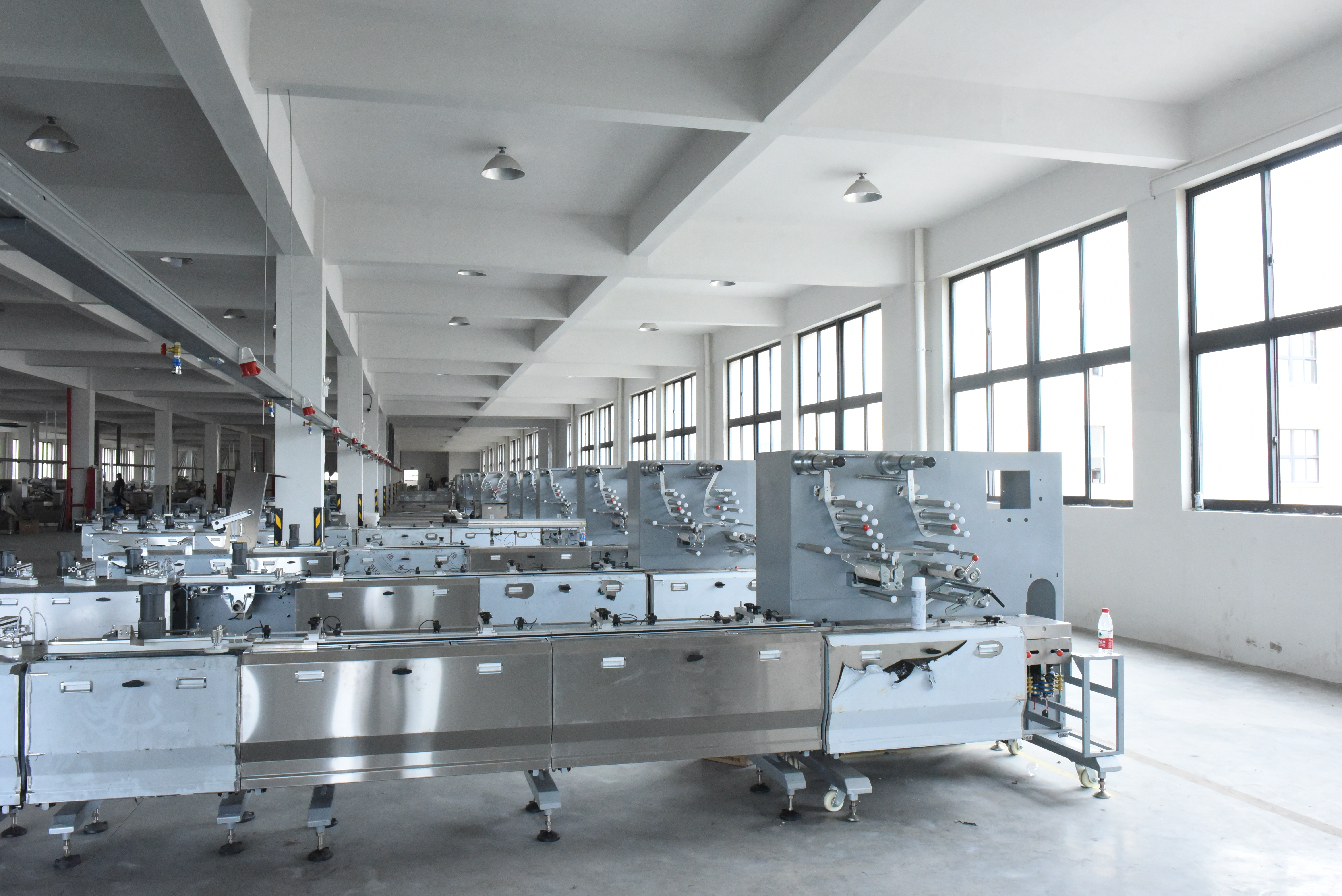

This is chocolate packaging machine workship condition.

DSC_9586DSC_9583
