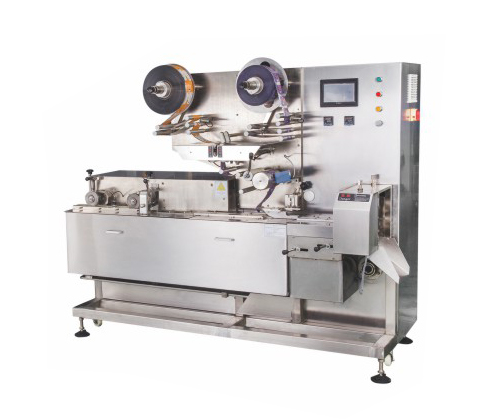

Automatic Cut&wrap pillow packing machine

Application: the machine is widely used to the chewing gum, toffee, extruding type candy.

Technical parameters:

  1. The machine can connect directly with the production line.

  2. double paper rollers and automatic paper splicer device.

  3. servo motors control, PLC and touch screen display.

  4. Servo motors control the infeed and pressed rollers. When change the product length, it only need to set in the touch screen for infeed roller parameter.

  5. Scissor cutter to cut the product, it’s more precise in the cutting point and length.


Specification:

Model

DL-600H

Packing speed

50-600pcs/min

Machine   Dimension

2000*1200*1700mm

Net Weight

1000KG

Power

380/220V   customized according to the real condition

Wrapping   materials

OPP/CPP   OPP/PE/PET, heating sealing materials.

Power

7.5KW

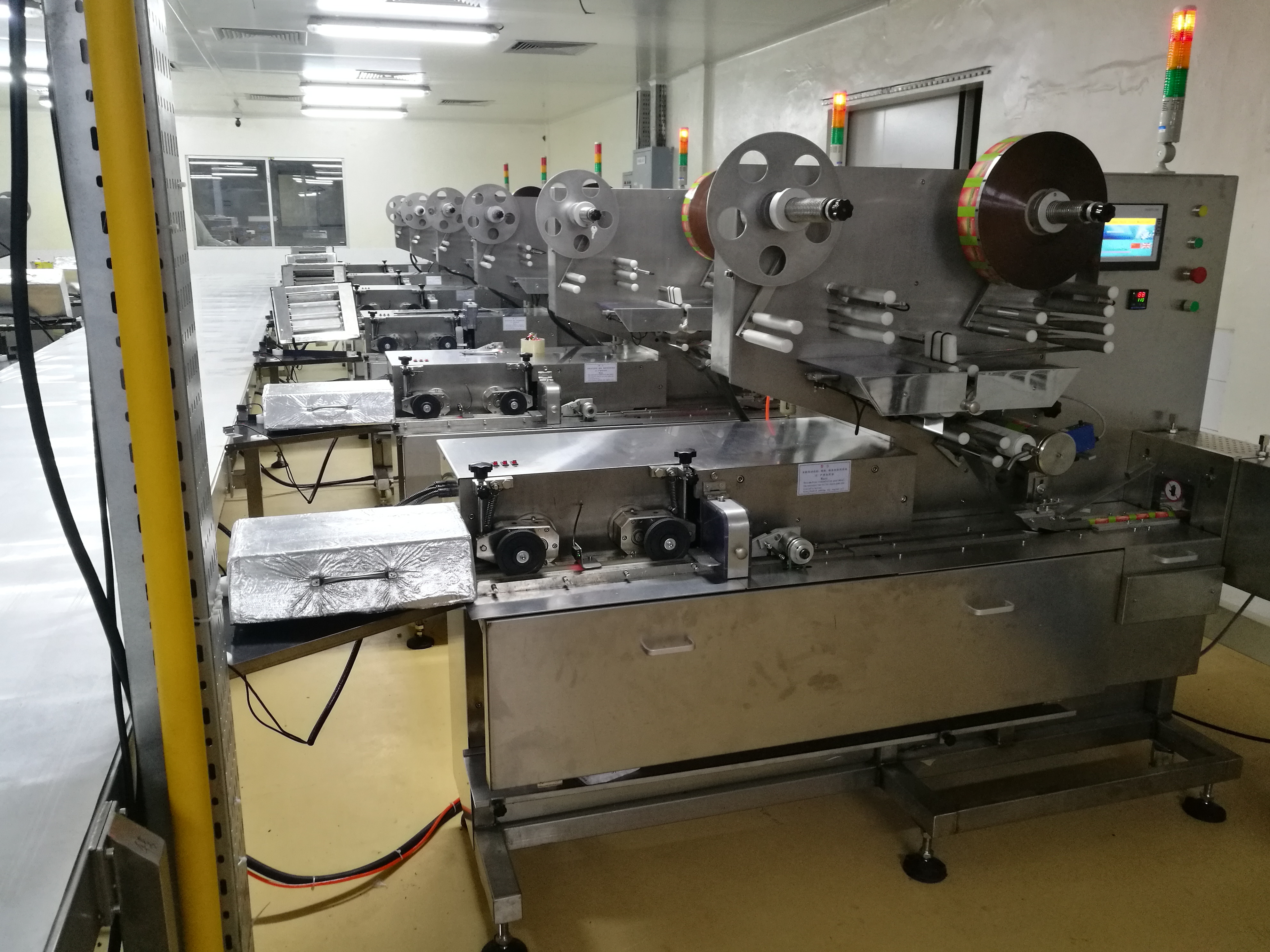

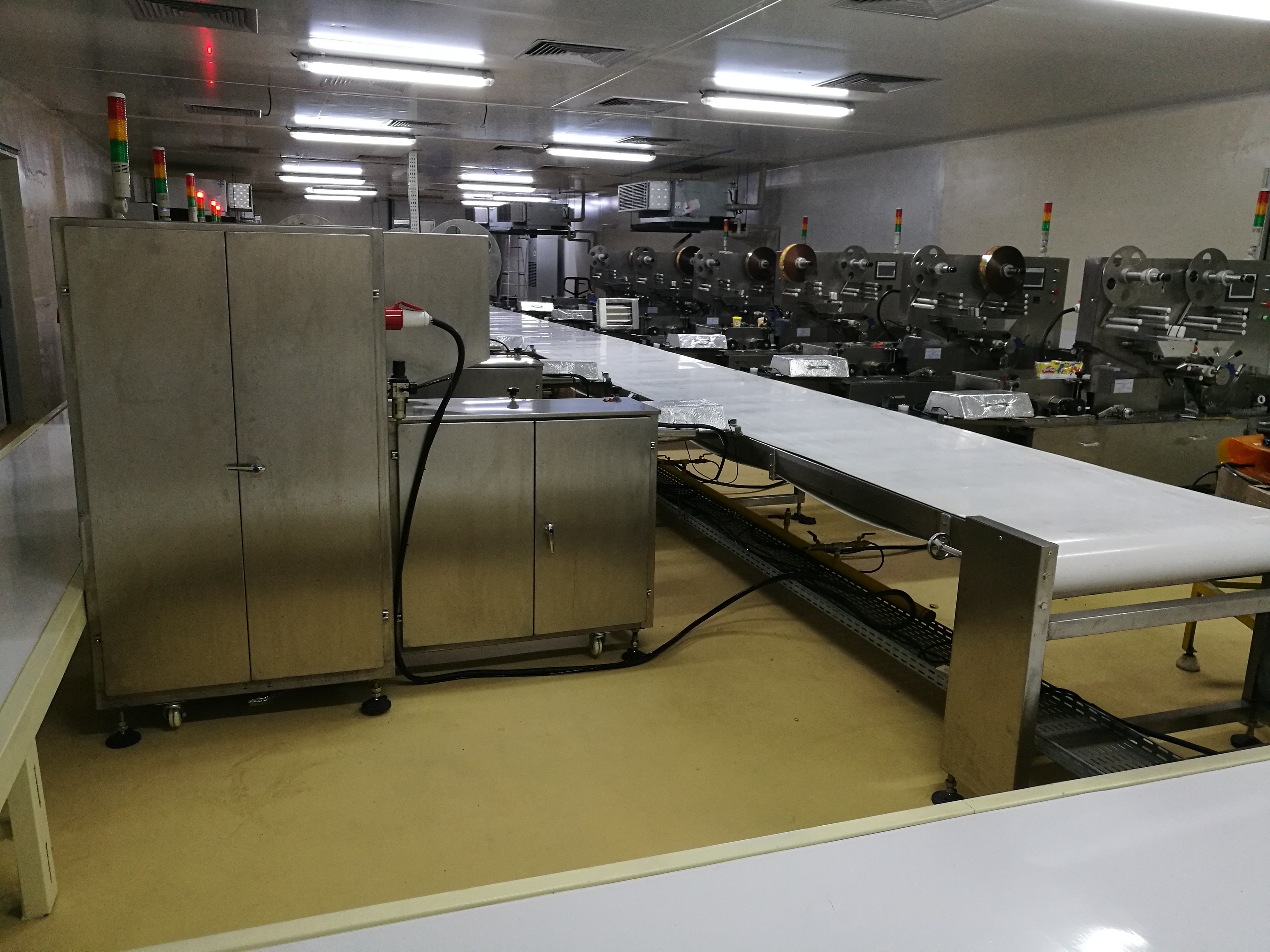

DL-600Hcut & wrap flow packing machine (1)cut & wrap flow packing machine (2)
