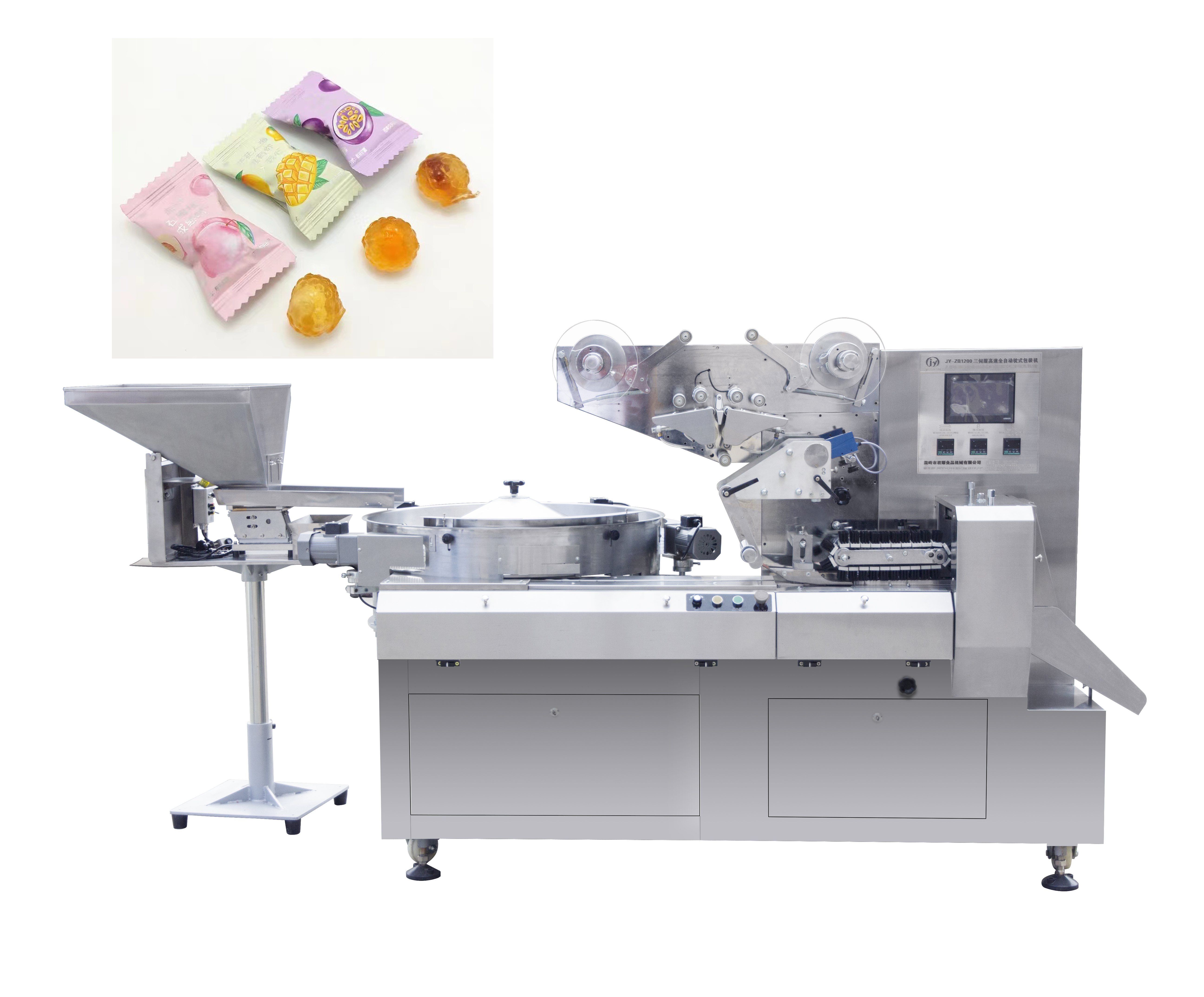

High Speed Flow Type Candy Packing Machine(JY-ZB1200)
note | If need 304 machine structure, it will need to add 2000usd cost. If need Panasonic servo motors brand, it will need to add 3000USD. |
Applications
This Pillow Packing Machine is widely used as below:
Food industry: Gum candy, Soft Gummy Candy, Toffee, Hard candy, scotch, etc.
Medical catalogue: The pills with the shape of spherical, ellipse, waist round, block, square, etc.
Main Features
-Three Servo Motors Control, Touch Screen Display.
-Ultra-big feeding Plate, Double Paper Roller Automatic splicer device.
-Automatic photocell tracking device, High precision cutting, and flexible for size adjustment.
-Touch screen display, r with steady performance, touch screen display.
Technical Parameters
packing speed | 50-1200 bags/min |
Net weight | 1245KG |
Finished bag size | 50mm-80mm |
Outside dimensions | 2650mm×1200mm×1700mm |
Total power | 4.5KW |
voltage | 380V, 50HZ(can be customized) |
the packing shape of product | Round slice, ball shape, ellipse, waist round shape, cylindrical, block etc |
adopted product | hard candy, soft candy, toffee, center filled candy, scotch, pill,chewing gum. |
film | OPP, CPP, aluminum plastic film and other hot-sealing material, etc |
Advantage as below:
1. Double paper rollers, automatic paper splicer device.
Our paper splicer adopts the zigzag knife to cut the film easily. Same with Germany Bosch
Design.
Pls see picture as below:
2. Three servo motors control, rapid reaction, wide bag length adjustment, and precise bag length cutting point.
3. imported Japanese bearings, high quality and long service life.
4. Auto vibrator hopper to feed the product
