Automatic feeding Packaging Machine for Nougat, Nougat Bar (JY-1000)

JY-L1000牛轧糖

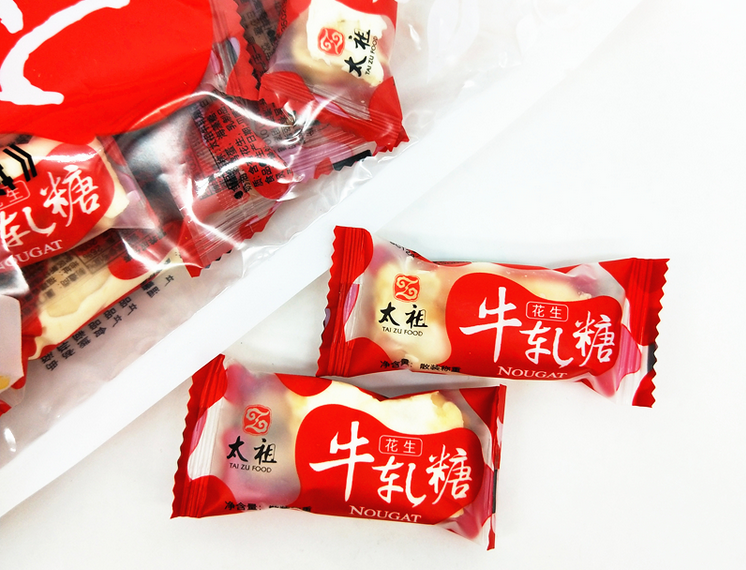

Finished Packaged Nougat Picture is as below. Pillow type nougat package is very popular in the market.

牛轧糖2微信图片_20220519085255

Application:

this packaging machine is professionally designed for the nougat, nougat bar, candy bar, chocolate bar, protein bar and similar products package.


Main Advantage:

1.NINE  Servo motors, PLC Control and touch screen display.

2. Automatic Nougat feeding for the complete packing line.

3.Belt Feeding, efficient, reduce the cost and save the space.

4.Double paper rollers, automatic paper splicer device (paper splicer device designed according to Germany Bosch)

5.Equips with the fan to positionize the product ensure pusher exactly push the product to sealing area.


Technical Parameters:

Packing Speed

50-800pcs/min

Product Dimensions

According to real product size

Total Power

7.3kw

Outside Dimensions

7000mm*1400mm*1600mm(L*W*H)

Net Weight

2000kg

Power Source

380V;50HZ,3phase(can customized)


Delivery time:45 days.

packing machine export package:seaworthy wooden case.

packing machine shipment:By sea.

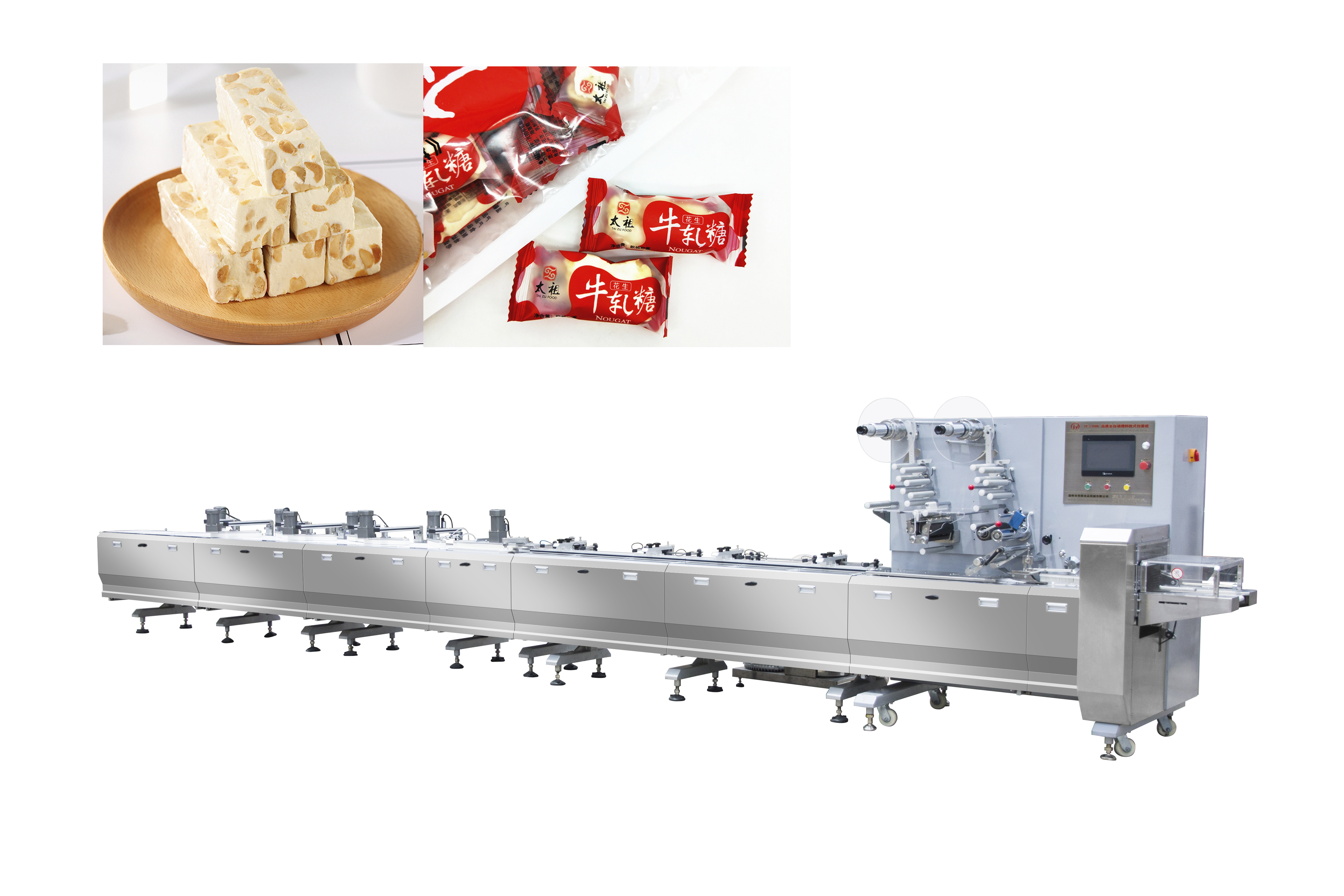

Nougat Packaging Machine structure is as below.

JY-L1000牛轧糖

The packaging machine uses the belt feeding system. it can pack nougat , chocolate coating nougat bar and chocolate bar products. all the feeding belt are individually speed control. Guide belt motor control the speed directly. it's exact tranmission speed.

IMG_5849

packing machine belt discharge are convenient and simple. it brings the convenient for the packing machine cleaning when the nougat package finishes.the maintenance team can discharge the belt easily.

IMG_5860

IMG_5872

Six Sections separating belts are drived by six servo motors. the belt speed is automatic increasing and decreasing depends on the nougat infeed speed. it makes the package intelligent and stable performance.

IMG_5865

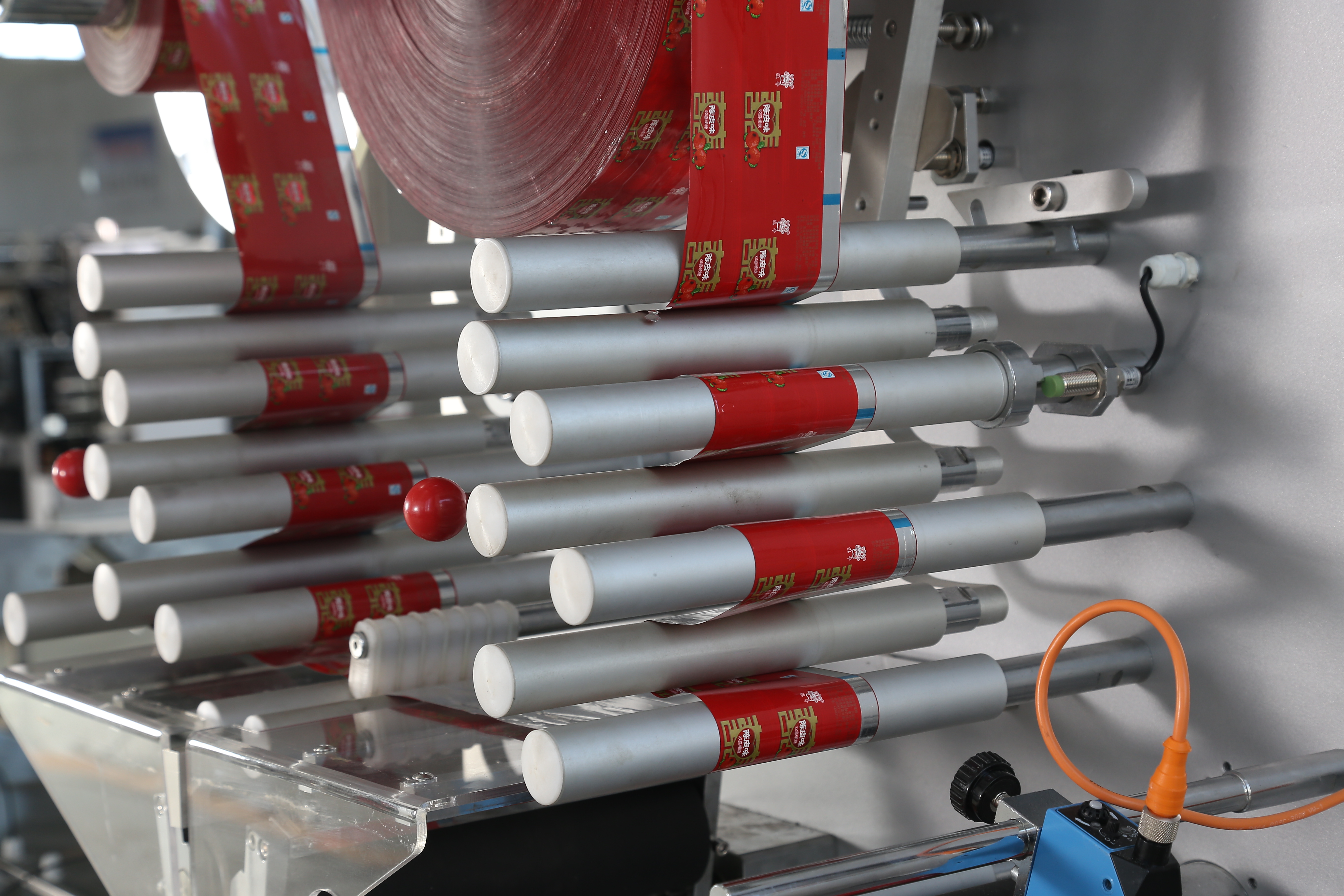

Double Paper rollers and automatic splicer design are convenient for the nougat producers to save the film change time. it makes the nougat package efficiently.

IMG_5840IMG_5837

30000m2 factory production condition and workshop modern management are strong guarantee to the nougat client and packaging machine quality.

DSC_9536
