English

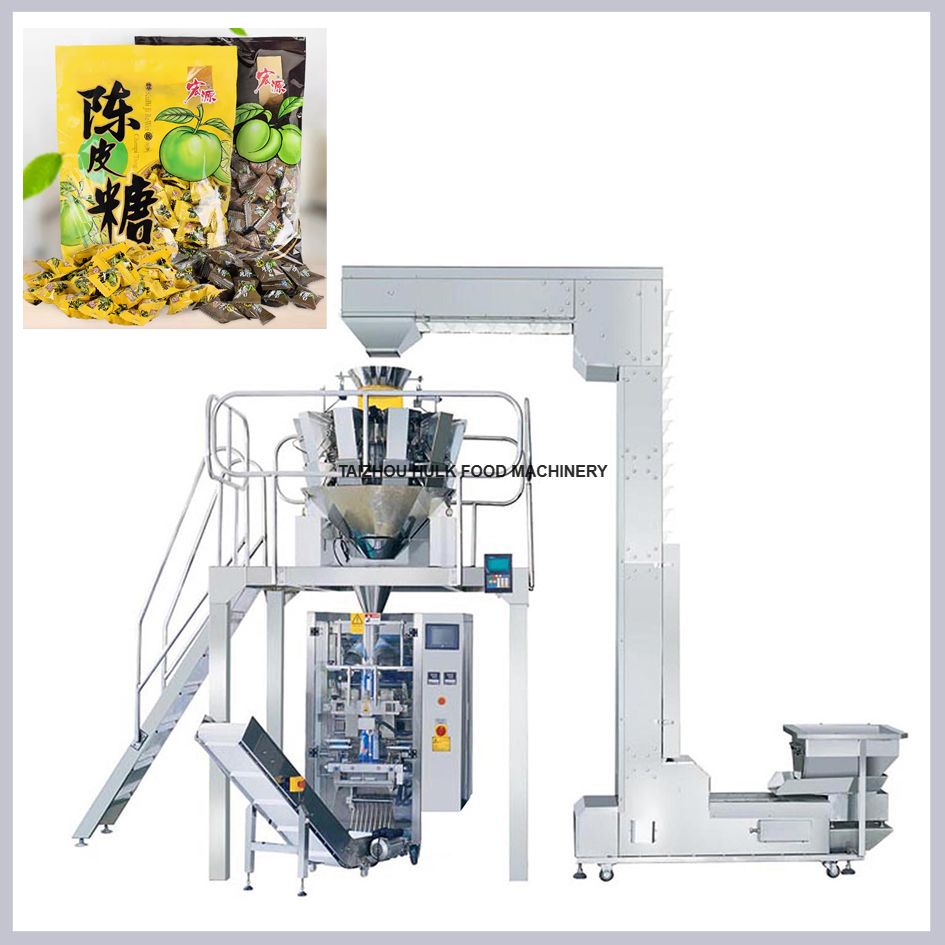

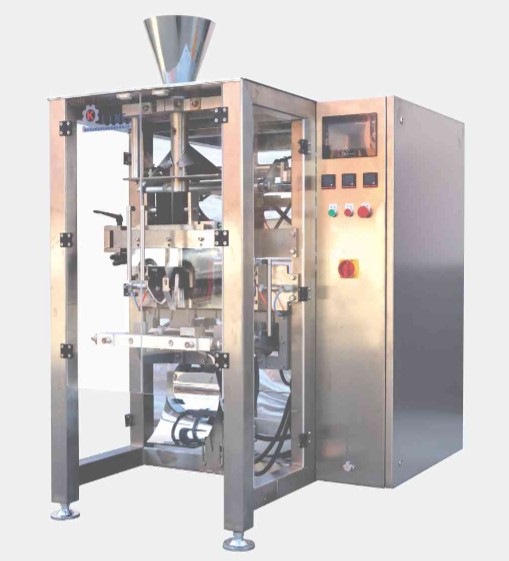

Vertical Form Seal Packaging Machine
Technical parameters:
Bag size: 80-320mm long, 80-200mm wide
Packaging speed 15-70kg/min
Power supply type single-phase 220V 50HZ
Compressed air consumption 6kg/cm ² 250L/min
Machine noise ≤ 75 db
Total power 3.0KW
Operating Weight 580kg
Overall dimensions 1770 × one thousand one hundred and five × 1500 (mm) equipment performance：
l The entire machine adopts a servo control system, and the touch screen operation is convenient
l Equipped with an automatic fault tracking and alarm system, real-time display of operating conditions
l The entire machine is made of stainless steel frame material, which meets food and requirements
l It can be combined with measuring equipment such as computer multi head combined scales, screw scales, electronic scales, and measuring cup systems to achieve accurate measurement
The entire machine design complies with GMP standards and has passed CE certification.
Z-type elevator (stainless steel 304)
TST-3200HA Box elevator
Hopper capacity: 1.8L
Hopper material: food grade PP
Production capacity: 4-6.5m ³/ H electricity
Voltage: AC 220V single-phase, 50HZ
Power: 0.75KW, customized for export height
Multi-Head Weigher
Weighing range 15g~3000g
Accuracy level X (2)
Maximum speed 70WPM
Power requirement 220V, 50/60HZ, 1.5kW
Hopper capacity 1.6L
Packaging size 1436 * 1086 * 1458
Stainless Steel Platform
304 stainless steel
Wall thickness 2mm
Anti slip aluminum plate 3mm, combined weighing platform
Discharge machine
Technical parameters:
Conveying speed: 1-30m/min
Power: 120W
Voltage: AC single-phase 220V, 50HZ
Main structural performance: Food grade PU belt, carbon steel spray molded outer frame.
Vertical Form Seal Packaging Machine
Technical parameters:
Bag size: 80-320mm long, 80-200mm wide
Packaging speed 15-70kg/min
Power supply type single-phase 220V 50HZ
Compressed air consumption 6kg/cm ² 250L/min
Machine noise ≤ 75 db
Total power 3.0KW
Operating Weight 580kg
Overall dimensions 1770 × one thousand one hundred and five × 1500 (mm) equipment performance：
l The entire machine adopts a servo control system, and the touch screen operation is convenient
l Equipped with an automatic fault tracking and alarm system, real-time display of operating conditions
l The entire machine is made of stainless steel frame material, which meets food and requirements
l It can be combined with measuring equipment such as computer multi head combined scales, screw scales, electronic scales, and measuring cup systems to achieve accurate measurement
The entire machine design complies with GMP standards and has passed CE certification.
Z-type elevator (stainless steel 304)
TST-3200HA Box elevator
Hopper capacity: 1.8L
Hopper material: food grade PP
Production capacity: 4-6.5m ³/ H electricity
Voltage: AC 220V single-phase, 50HZ
Power: 0.75KW, customized for export height
Multi-Head Weigher
Weighing range 15g~3000g
Accuracy level X (2)
Maximum speed 70WPM
Power requirement 220V, 50/60HZ, 1.5kW
Hopper capacity 1.6L
Packaging size 1436 * 1086 * 1458
Stainless Steel Platform
304 stainless steel
Wall thickness 2mm
Anti slip aluminum plate 3mm, combined weighing platform
Discharge machine
Technical parameters:
Conveying speed: 1-30m/min
Power: 120W
Voltage: AC single-phase 220V, 50HZ
Main structural performance: Food grade PU belt, carbon steel spray molded outer frame.
Taizhou Hulk Food machinery company professionally engaged on the chocolate packing machine, candy packing machine, flow packing machine, bar line machine, confectionery kitchen and food machine production.
