Rotary Feeding Puff Snack Rice Wafer Bar Packaging Machine

Share to:
  • JY-L600B
  • HULK
  • 8422303090
  • 6kw
Availability:
Quantity:

Rotary Feeding Packaging Machine for puffed bar rice bar snack bar wafer bar extrusion bar


Application:

Rotary Feeding Packaging Machine has the advantage for unregular shape products.

such as wafer bar, snack bar, puff bar, marshmallow, oatmeal chocolate, cereal bar, protein bar etc.

the machine occupy the small space on feeding. it's very cost efficient in price and feeding performance.

JY-L600B

rotary disc feeding system


Main Advantage:

1.NINE  Servo motors, PLC Control and touch screen display.

2. Automatic feeding for the complete packing line.

3.Rotary Feeding, efficient, reduce the cost and save the space.

4.Double paper rollers, automatic paper splicer device (paper splicer device designed according to Germany Bosch)

5.Equips with the fan to positionize the product ensure pusher exactly push the product to sealing area.


Technical Parameters:

Packing Speed

50-800pcs/min

Product Dimensions

According to real product size

Total Power

7.3kw

Outside Dimensions

5800mm*1400mm*1600mm(L*W*H)

Net Weight

3000kg

Power Source

400V;50HZ,3phase(can customized)

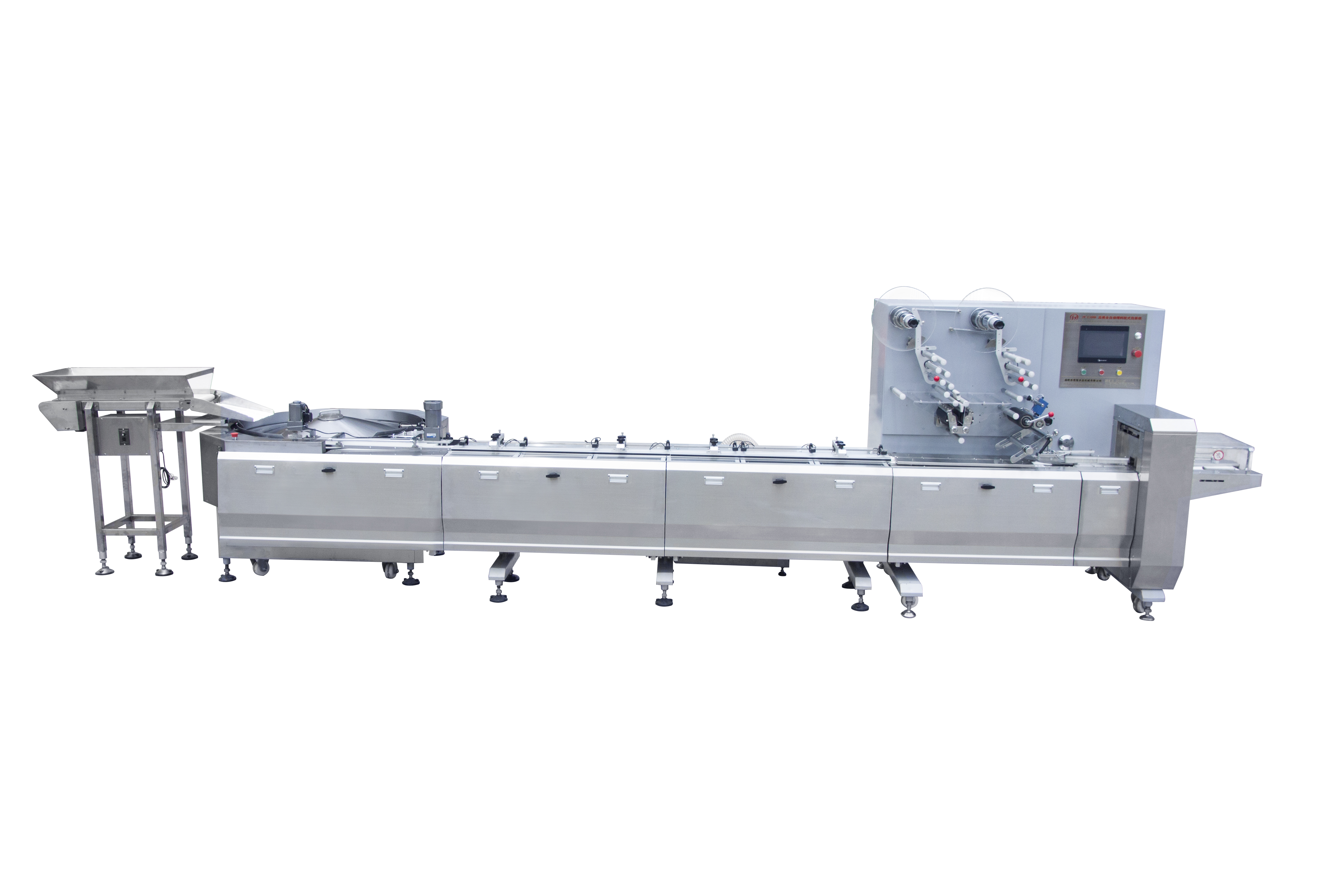

this is complete packaging machine structure.JY-L600B

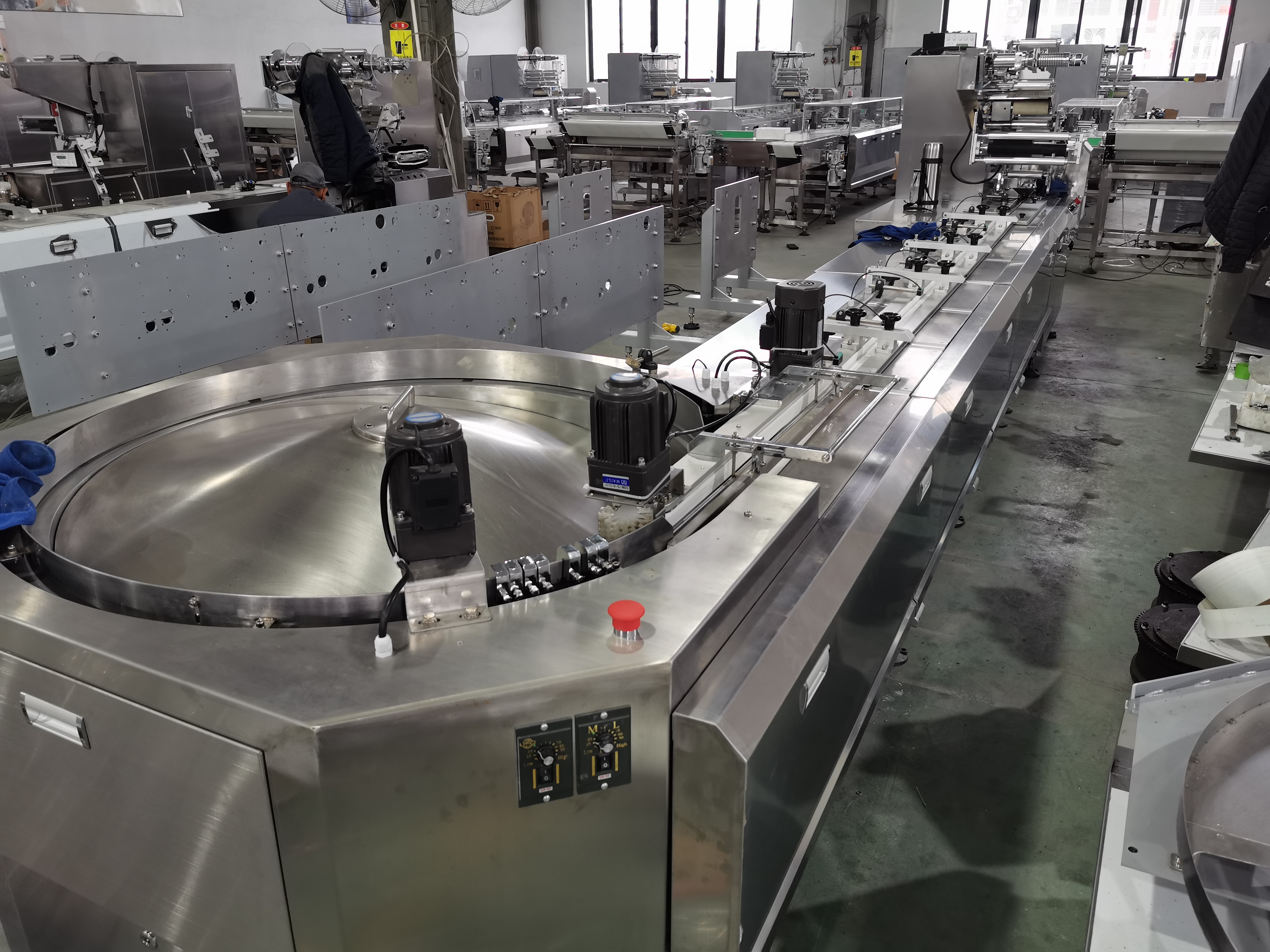

IMG_20200303_155635

Rotary Feeding system for unregular shape products, such as cylindrical, half ball shape, rectangular shape, square shape products. it can pack the similar product such as puff bar,marshmallow, cereal bar, egg roll etc.

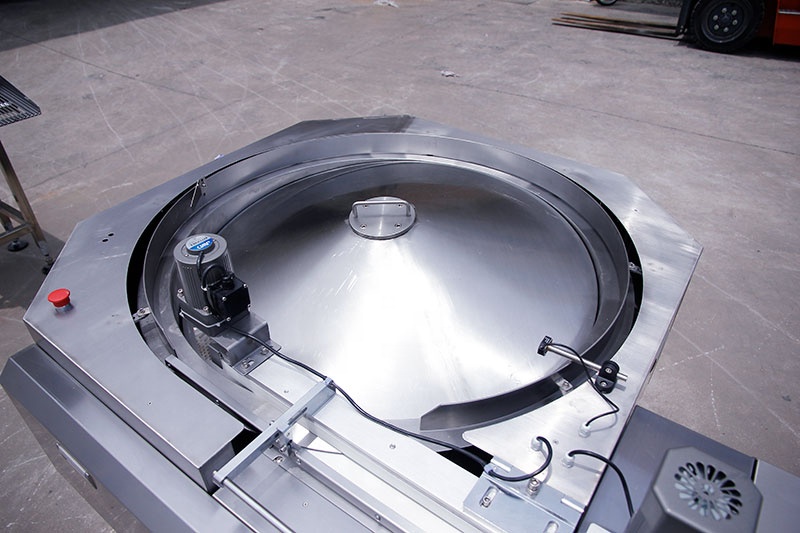

rotary disc feeding system

the packing machine has totally nine servo motors control. Six servo motors control the separating belt in intelligent way. Another three servo motors control the sealing, film infeed, chain.

IMG_5863

Welcome to contact us for more informations.
