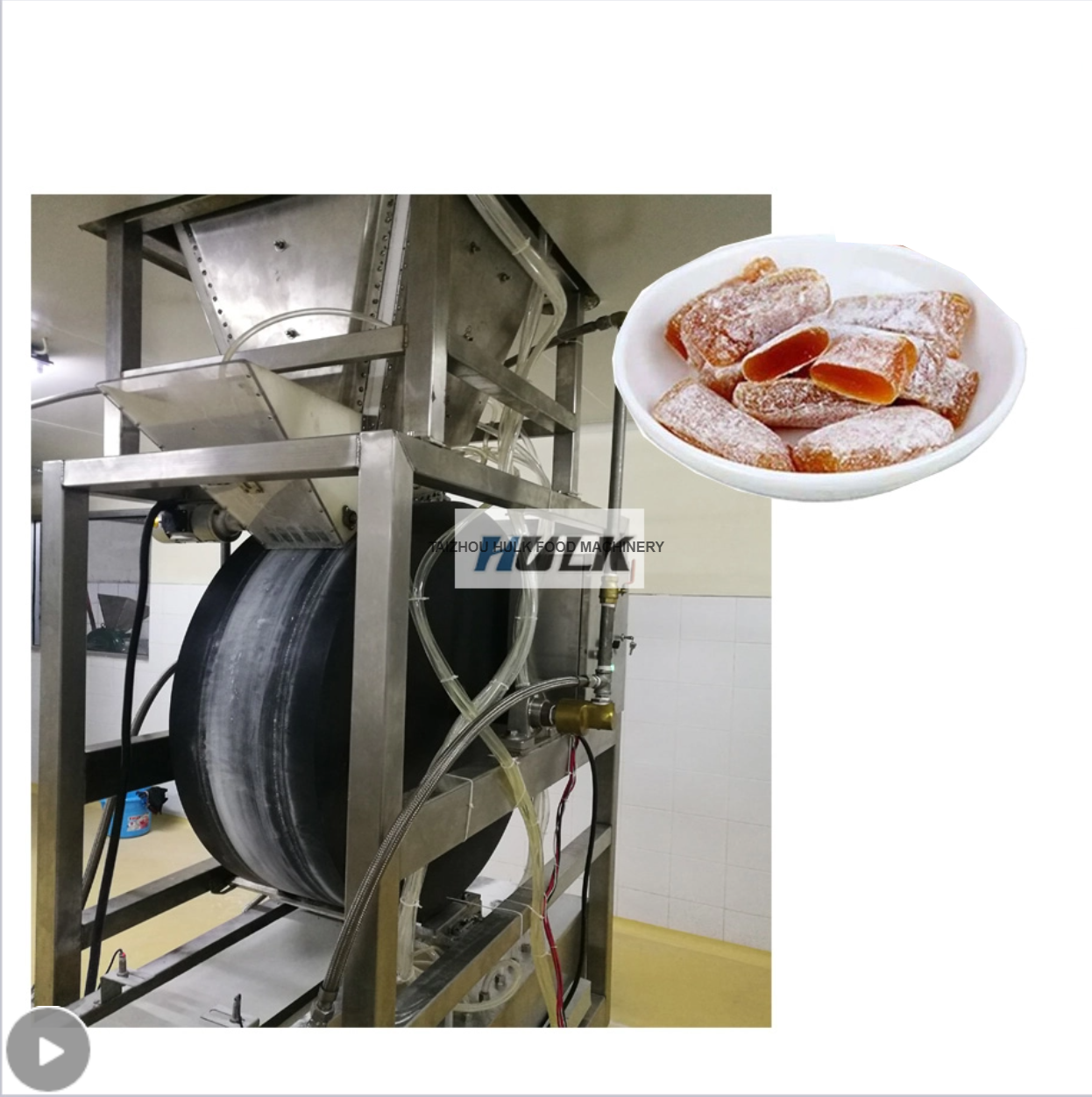

Gingerbon Candy Production Machine for Ginger Candy Production

Share to:
  • BG-300
  • HULK
  • 8438200000
  • 50kw
Availability:
Quantity:

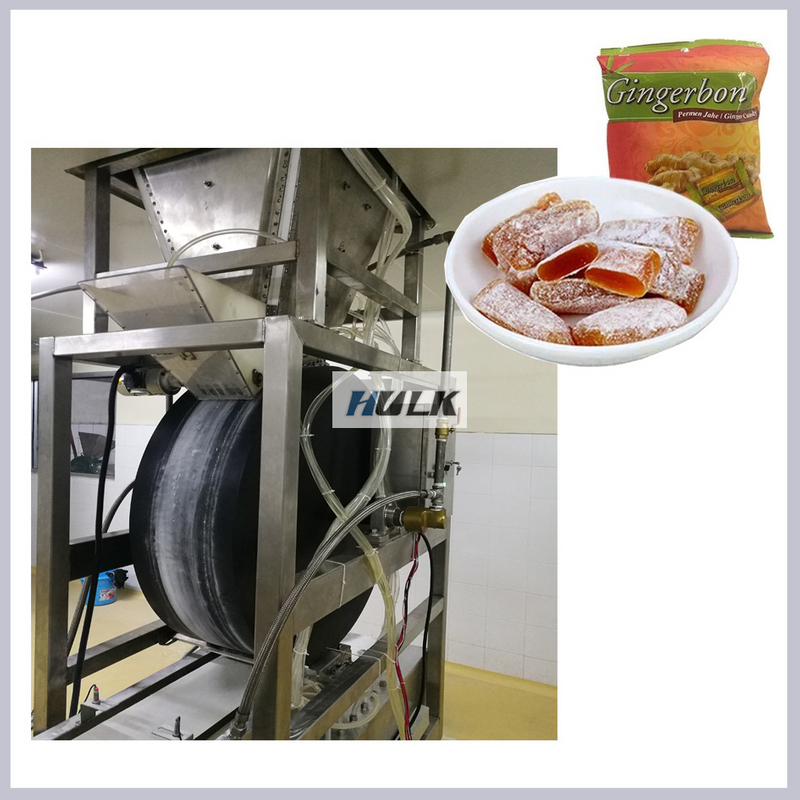

forming rollers units

Roller width

340mm

Roller diameter

1100mm

Roller Materials

Teflon coating

Jacket thickness

30mm

Motor brand

ABB

Motor quantity

1pcs

Frequency converter

Siemens

Frequency Converter

1pcs

Machine structure

304 stainless steel

Machine dimension

2400*500mm*3000mm

Machine weight

500KG

Feature:

  1. rollers      have the individual frequency converter to adjust the speed.

  2. The mass      infeed uses the teflon hopper without stickness to materials.

  3. The      roller uses the teflon coating

  4. The mass      thickness is convenient to be adjusted by the hand wheel.

  5. The drum      roller has the jacket layer for the cooling medium like water,glycol etc.


3. Five layers Cooling tunnel

Belt   Speed

9-15M   adjustable

Machine   structure

304   stainless steel

Belt   width

400mm

belt   length

12M*5 layer=60M

Belt   material

Teflon

Motor   brand

ABB

Motor   quantity

5 pcs

Frequency   converter

5pcs

Machine   dimenstion

12000*1500*1700mm

Machine   weight

1000kg

Feature:

1.       jacket layer stainless steel cooling.

2.       three cooling tunnel, efficient save the space.

Slitting units

Belt   Speed

3-6M   adjustable

Knife   materials

Teflon   coating

Spread   belt

PU   materials

Machine   structure

304   stainless steel

Motor   brand

ABB

Motor   quantity

2pcs

Applicable   mass width

150mm

12M PU Belt Conveyor

Machine   structure

304   stainless steel

Belt   Materials

PU   belt

Belt   Length

12M

Cut&wrap flow packing machine

Application: the machine is widely used to the chewing gum, toffee, extruding type candy.

Technical parameters:

  1. The machine can connect directly with the production line.

  2. Double paper rollers and automatic paper splicer device.

  3. Four  servo motors control, PLC and touch screen display.

  4. Servo motors control the infeed and pressed rollers. When change the product length, it only need to set in the touch screen for infeed roller parameter.

  5. Scissor cutter to cut the product, it’s more precise in the cutting point and length.

Specification:

Model

JY-C800

Packing speed

50-1000pcs/min

Machine   Dimension

2000*1200*1700mm

Net Weight

1000KG

Power

380/220V customized   according to the real condition

Wrapping   materials

OPP/CPP   OPP/PE/PET, heating sealing materials.

Power

7.5KW

Machine   structure

304 stainless

Electrical parts

Servo   motors

Panasonic(Japan)

Sensor

Jindeli(China)

Servo   drive

Panasonic(Japan)

Breaker

Chint(China)

Other electrical   parts

China   brand

Touch   screen

siemens
