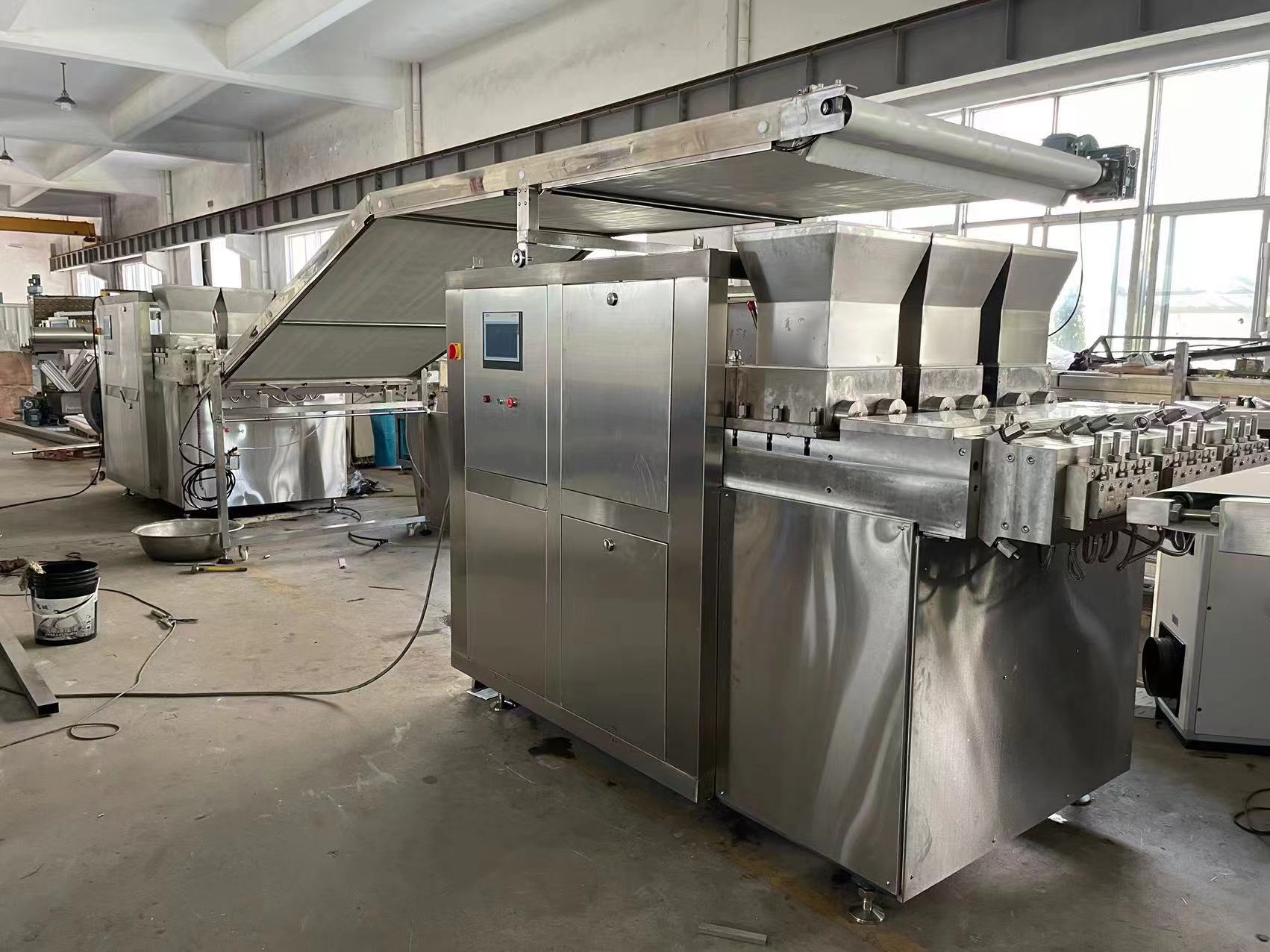

Chewy Candy Extruder Production Line
Extruder type is capable to offer 1-6 ropes with capacity of max.1000kg/hour for soft toffee, chewy and gum production. This machine is equipped with advanced electrical control system and mechanical structure. It has very stable and continuous running as well as longevity after more than 20 years market proof. By adopting best material in China, spare parts processing and international electrical appliances, it is reliable in safety and convenient for operation.
Special Features:
- Modular construction extruders offers a new flexibility that allows their use in almost all application areas and production lines.
- Very strong design for constant performance in decades of years.
- Wide product range. Easy size, shape or color format change.
- Lines cut and wrapped low-boiled products, filled soft candy and chewing gum.
- Siemens control system, simple operation interface and trouble shooting.
- International brand of electrical components such as Siemens, Schneider and so on.
- SEW driven motor and reducer guarantees smooth and constant running.
- Safe and reliable operation.
- Very competitive price.
TECHNICAL DATA
Extrusion capacity: | 1000 kg/hour |
Number of candy ropes: | 1-6 rope(s) |
Extrusion screw dia: | 130 mm |
screw length: | 800mm |
Motor | R97,ratio 75 |
Motor power: | 2X7.5 kw |
Power for water-heating: | 3X6kw |
Motor protection: | IP 55 |
Speed adjustment range: | 1:28 |
Water consumption: | 300lt/hour |
Machine weight: | 2300 kg |
Overall dimension: | 2350×1570×1550mm |

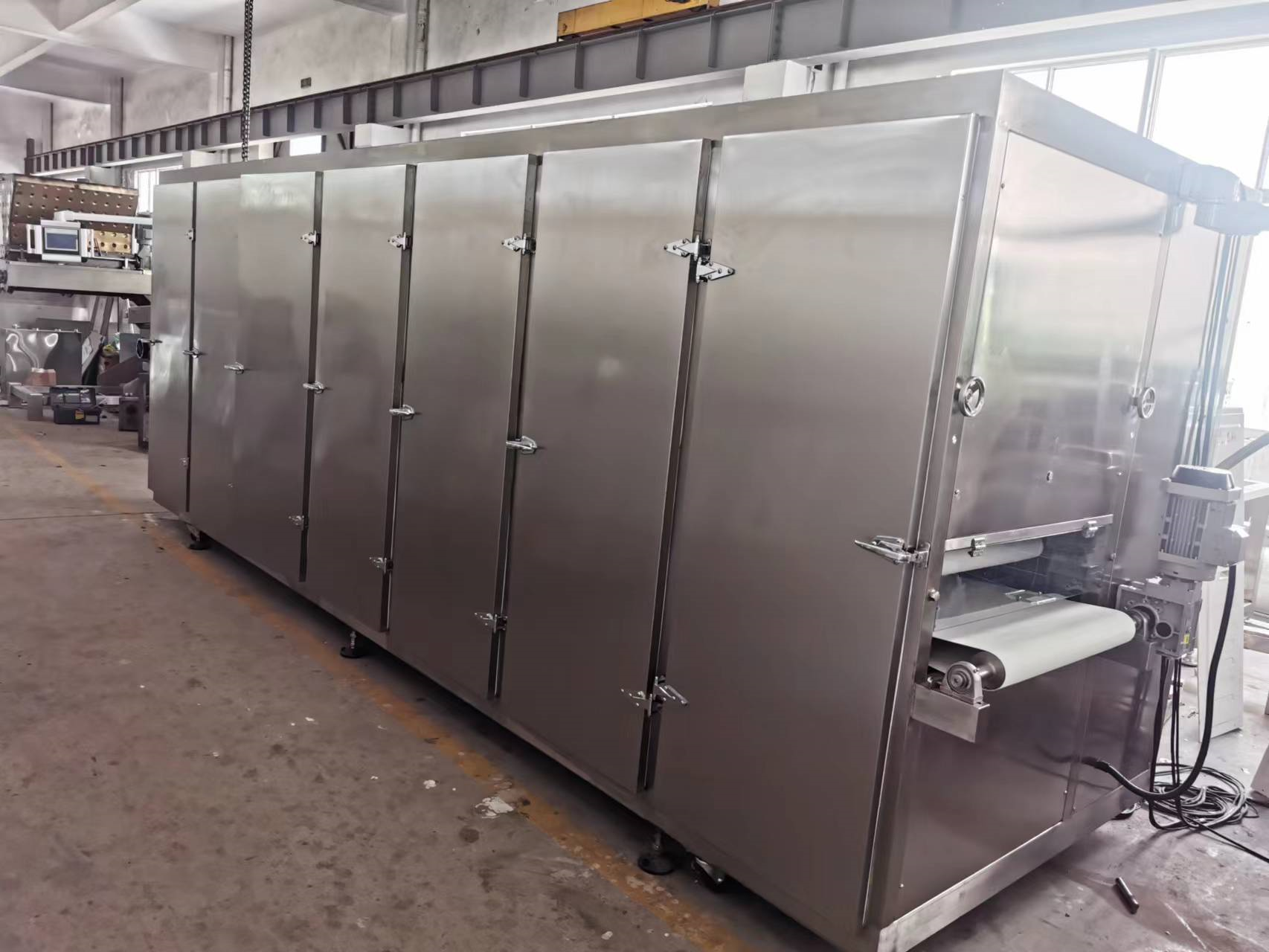

Cooling Tunnel
Cooling Tunnel type is based on the advanced European technology. It is widely used for bubble gum, chewing gum, chewy, toffee and others.
Special Features:
- Very strong design and material selection for decades of years continuous performance
- Mass contacting parts are made of full stainless steel
- Siemens control system and ABB driven motor
- Stable and constant cooling automatically
- Copeland compressor
- 75mm wall for better temperature keeping
- HMI operation, parameter settings, working condition & trouble shooting integrated on touch screen
- Dynamic control system
- 750 mm width conveyor belt
- Easy replacement of conveyor belt
Technical Data
Cooling tunnel layer: Individual 7 layers belt conveyor. Each belt conveyor is controlled by individually ABB motor with inverter to adjust the speed.
Environment: temperature 20-25 0 C, relative humidity ≤55%
Cooling tunnel: temperature 4-100 C, relative humidity 50%
Power supply: to be specified by the customer
Cooling water intake pressure: 1.5~2kg/cm2
Cooling water flux: 10m3/H
Power consumption: about 33kw
Power of Refrigeration system: 13Hp
Water temperature: < atically
- Copeland compressor
- 75mm wall for better temperature keeping
- HMI operation, parameter settings, working condition & trouble shooting integrated on touch screen
- Dynamic control system
- 750 mm width conveyor belt
- Easy replacement of conveyor belt
Technical Data
Cooling tunnel layer: Individual 7 layers belt conveyor. Each belt conveyor is controlled by individually ABB motor with inverter to adjust the speed.
Environment: temperature 20-25 0 C, relative humidity ≤55%
Cooling tunnel: temperature 4-100 C, relative humidity 50%
Power supply: to be specified by the customer
Cooling water intake pressure: 1.5~2kg/cm2
Cooling water flux: 10m3/H
Power consumption: about 33kw
Power of Refrigeration system: 10Hp
Water temperature: < 30℃
Compressor: CopeLand, hermetically sealed compressor
Overall dimension: 7600X1600X2040mm
Machine weight: abou 30℃
Compressor: CopeLand, hermetically sealed compressor
Overall dimension: 7600X1600X2040mm
Machine weight: about 4000kg
Distributing Belt Conveyor
Function:To connect from cooling tunnel to cut and wrap machine.
Motor power: 1.1kw, frequency converter to adjust the speed.
Belt Materials:PU.
belt dimension:11000*1000*900mm
Belt width:800mm
Cut and wrap machine
Application: the machine is widely used to the chewing gum, toffee, extruding type candy.
Technical parameters:
The machine can connect directly with the production line.
double paper rollers and automatic paper splicer device.
Seven servo motors control, PLC and touch screen display.
Servo motors control the infeed and pressed rollers. When change the product length, it only need to set in the touch screen for infeed roller parameter.
Scissor cutter to cut the product, it’s more precise in the cutting point and length.
Specification:
Model | DL-1000H |
Packing speed | |
Machine Dimension | 2450*1200*1700mm |
Net Weight | 1000KG |
Power | 380/220V customized according to the real condition |
Wrapping materials | OPP/CPP OPP/PE/PET, heating sealing materials. |
Power | 7.5KW |
