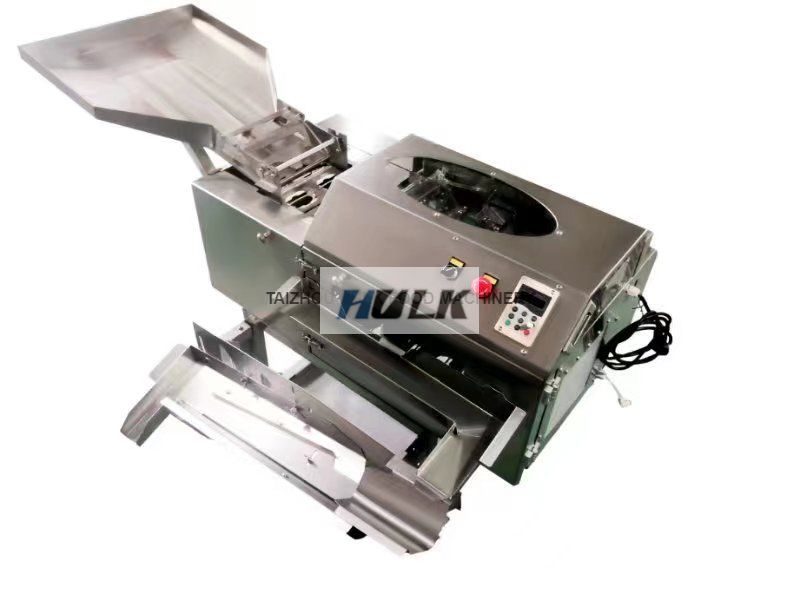

Egg Breaker & Yolk Separator
Machine Basic Parameters
Machine Model | JR-KL100 |
Yolk Separator power | 3.5kw |
Yolk Separator dimension | 5100X1225X1635mm |
Frequency | 50HZ |
Net Weight | 550kg |
Power of each area
| Name | Power |
| Operating speed inverter | 560W |

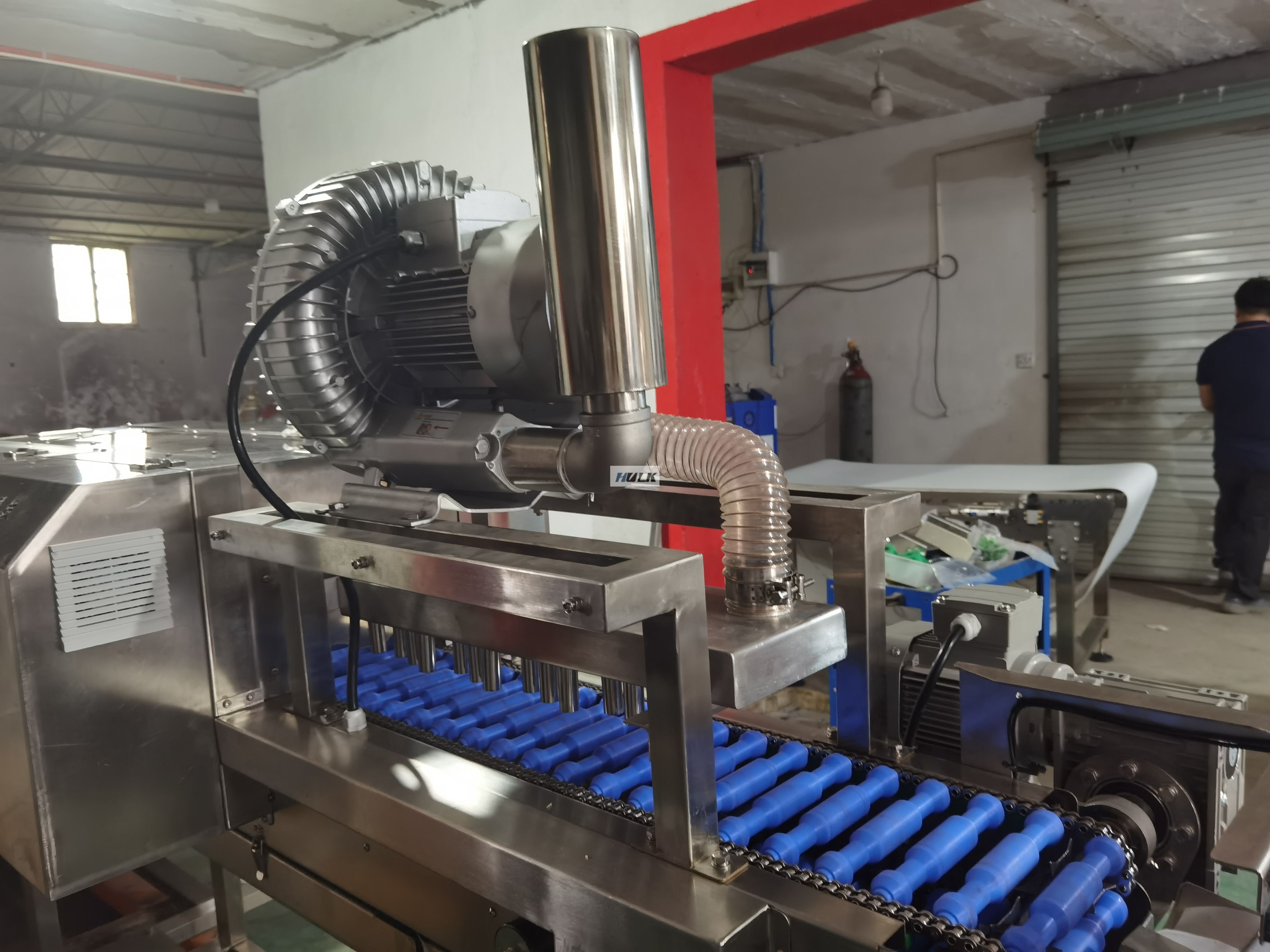

| Air drying area | 2200W |

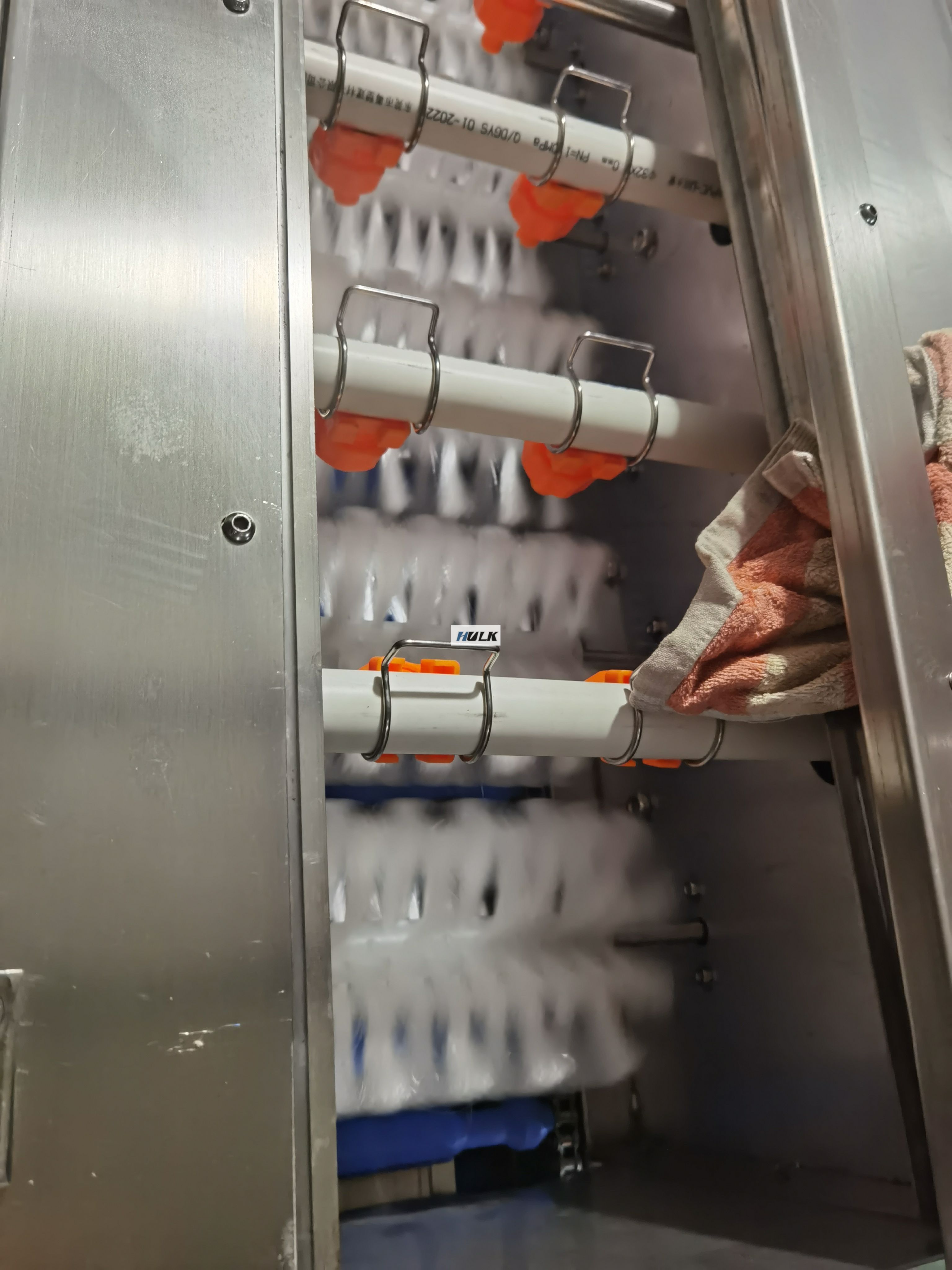

| Cleaning area | 440W |
| Egg white and yolk separator | 300W |
Egg White Separator Machine Introduction
1. The overall model occupies a moderate area and has a regular shape. It is not only suitable for medium and large food factories, but also for small food factories and other units.
2. The whole body of the machine is made of stainless steel, and the transmission parts are made of various waterproof and corrosion-resistant materials, which meets food hygiene requirements. The egg white separation area can be cleaned with water, making cleaning convenient and hygienic.
3. Speed inverter adjustment.

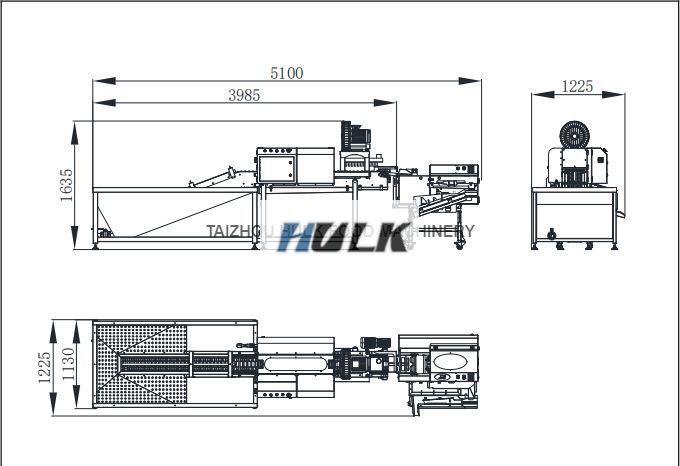

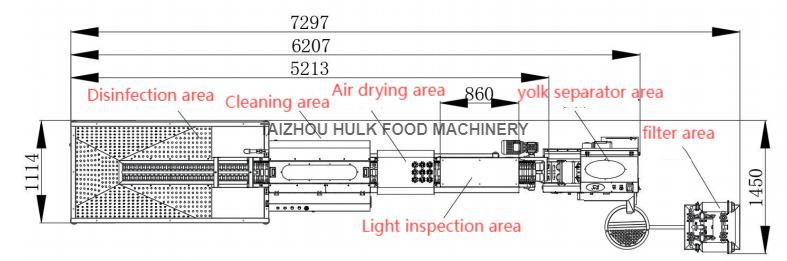

Machine Outer Dimension is as below:
Egg Break Machine Working Environment
1.temperature:+10℃---+65℃,relative humidity below 90%.
Egg Break Machine Storage Condition
temperature: minus 25℃-----+65℃ relative humidity below 90%

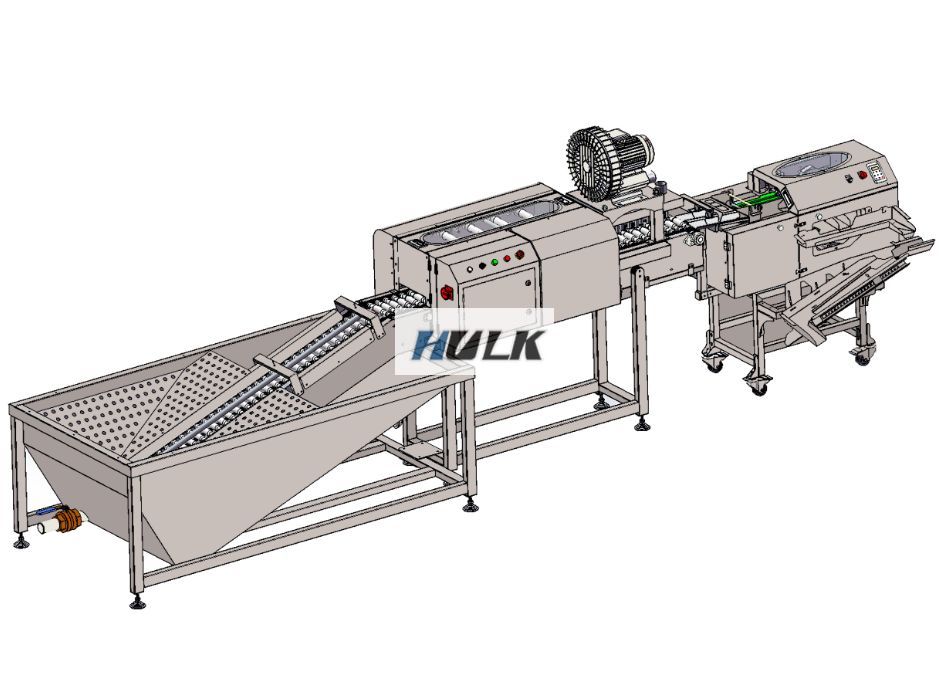

Egg Break Machine composed Parts as below
operation introduction
1. The single-phase 220V power supply with grounding is required, and after ensuring that there is no foreign matter in the machine, the host power supply is switched on, and the control panel is lit up by rotating the "power" switch.
2. Press the "RUN" button on the control panel, and the machine starts to work, and the broken parts inside begin to make a jointed kata kata sound.
3. Press the "STOP" button on the control panel to STOP the machine.
4. Slowly turn the small speed control knob on the control board, the machine speed is adjusted between 0 and the highest speed of the factory setting.
5. After the preceding information is confirmed, the device works properly. If there is an exception, contact the after-sales department of the supplier.

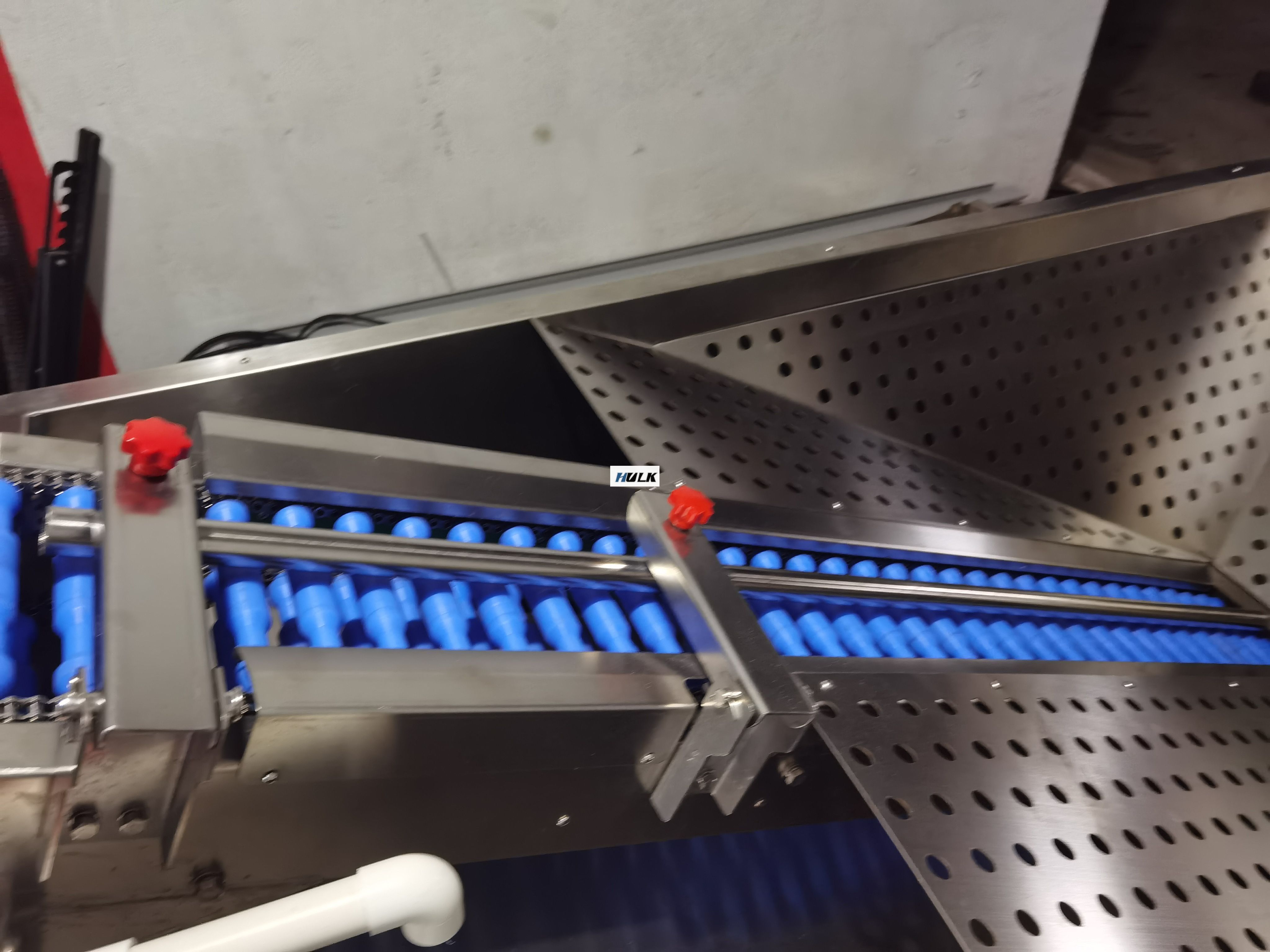

6. The eggs are placed on the tray, the first time you need to use your hand to block the tray outlet position, to prevent the eggs from breaking, to be released after there are eggs at the exit, to be enough eggs in the tray, you can start the machine, into the state of beating eggs.
7. Before normal startup, prepare eggshell collection box, bastard liquid collection box, egg white collection box, egg yolk collection box, and place the eggshell collection box at the end of the machine at the eggshell, bastard liquid collection box is placed under the separator start bin door.The egg white and yolk collecting tanks are placed at the end of the separator.
8. Open egg liquid through the egg tray and diversion tank into the egg yolk separator, eggshell automatically fall into the collection box.
9. When the yolk of the opened egg appears to scatter, it needs to be opened in time to press the door in the side of the tank into the bastard liquid collection box.Close the door after the scattered egg is flushed clean.
10. After the egg liquid flows into the separation tank, observe the separation of egg white and yolk. If egg white separation is not complete, adjust the gap size and length of the separation tank to ensure complete classification.
11. Turn off the knob "power" switch, cut off the power and clean the machine after obtaining enough egg liquid for use.
12. The eggs required by the equipment should be fresh eggs as far as possible. Long storage time of eggs will affect the separation effect of egg liquid. At the same time, there will be a few egg shells in the process of beating eggs, which need to be manually detected to avoid falling into the egg liquid.
