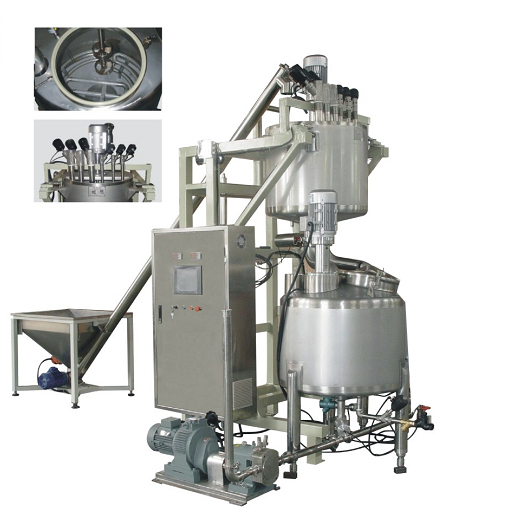

the machine is composed of screw elevator ,weighing system and dissolving tank.
machine operation: the screw elevator transport the sugar to the weighing system. after weighing, the sugar goes to the dissolving tank. the dissolving tank is the heated by the circulated copper pipe. it's controlled by the PLC system. the machine has the recipe store function.
capacity:600-750kg/h.
power:14.5kw
compress air:400
steam consumption:200kg/h
steam pressure:0.8mpa
machine dimension:2100*1400*3060mm
net weight:1000kg
