Protein Bar Chocolate Bar Candy Bar Packaging Machine(JY-L1000)

Share to:
  • JY-L1000
  • HULK
  • 8422303090
  • 8KW
Availability:
Quantity:

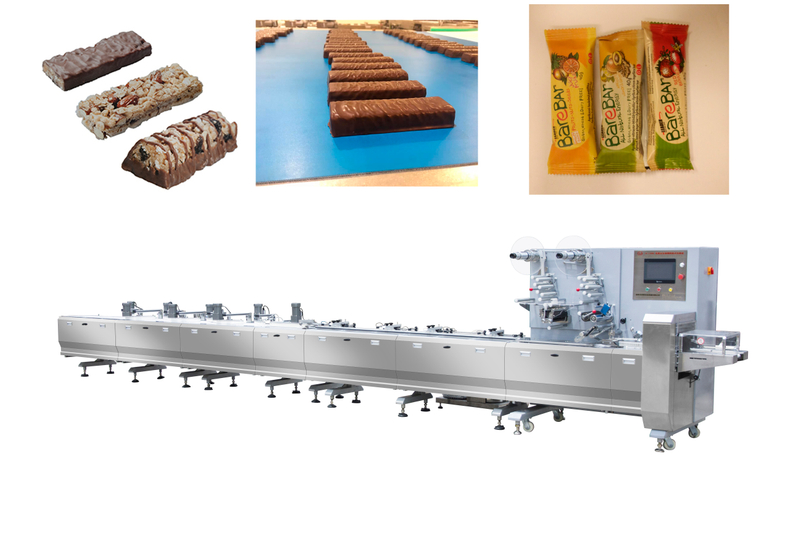

 Automatic feeding Protein Bar Chocolate Bar Candy Bar Packing Machine(JY-L1000)

JY-L1000蛋白棒

Main Advantage:

1.NINE  Servo motors , PLC and touch screen control.

2. Automatic feeding for the complete packing line.

3. automaticbelt speed adjustment through frequency converter,every conveyor belt is individual.

5. conveyor belt automatic deviation device through cylinder and photocell.

6. automatictemperature cooling through the air condition with two fans, air cooling or water cooling available.

7.Double paper rollers, automatic paper splicer device (paper splicer device designed according to Germany Bosch)


Technical Parameters:

Packing Speed

50-1000pcs/min

Product Dimensions

According to real product size

Total Power

9.5kw

Outside Dimensions

8900mm*1180mm*1786mm(L*W*H)

Net Weight

3300kg

Machine Export Package: Seaworthy Wooden Case.

Shipment: by Sea.




Guarantee:

1.One year guarantee for the quality, if components are damaged naturally, we will replace it freely. If Manually damaged, the clients

Response for the costs.

2.provide the complete installation,debugging,technology support and staff training.

3.permanent accessory parts supply only to our clients for competitive price, quick response for the after-sales service.


Protein bar, candy bar,chocolate bar packaging machine uses the automatic feeding system. the machine structure is 304 stainless steel materials. it ensures the high food hygiene requirement for the protein bar, candy bar, chocolate bar package.

IMG_5834

The packaging machine equips with double paper rollers and automatic splicer device.

it can automatic connect the another Roller film when first roll protein bar, candy bar or chocolate bar packing film finishes.

IMG_5840

the packaging machine equips with big Touch screen display. the touch screen brand can be customized according to the protein bar client requirement.

IMG_5838

the packaging machine adopts the best advanced Pu belt assembly structure. the technician can discharge or assemble the PU belt quickly and easily after cleaning the protein power.IMG_5865

the guide belt is controlled by the motor directly. there is no second time transmission. its more efficient and accurate.

IMG_5849

Depends on different protein bar, candy bar, chocolate bar capacity requirement, the packing solutions can be customized for one packaging machine, two packaging machine or more packaging machine.
