Dishwasher Tablets Packaging Machine(JY-L600)

Automatic feeding Dishwasher Detergent Tablets Flow Packing Machine(JY-L600)

Main Advantage:

1.NINE  Servo motors, PLC Control and touch screen display.

2. Automatic feeding for the complete packing line.

3.Rotary Feeding, efficient, reduce the cost and save the space.

4.Double paper rollers, automatic paper splicer device (paper splicer device designed according to Germany Bosch)

5.Equips with the fan to positionize the product ensure pusher exactly push the product to sealing area.

Technical Parameters:

Packing Speed	50-800pcs/min
Product Dimensions	According to real product size
Total Power	7.3kw
Outside Dimensions	5800mm*1400mm*1600mm(L*W*H)
Net Weight	3000kg
Power Source	400V;50HZ,3phase(can customized)

Machine Details Structure as below:

1.Rotary Disc Feeding, efficient and save the space

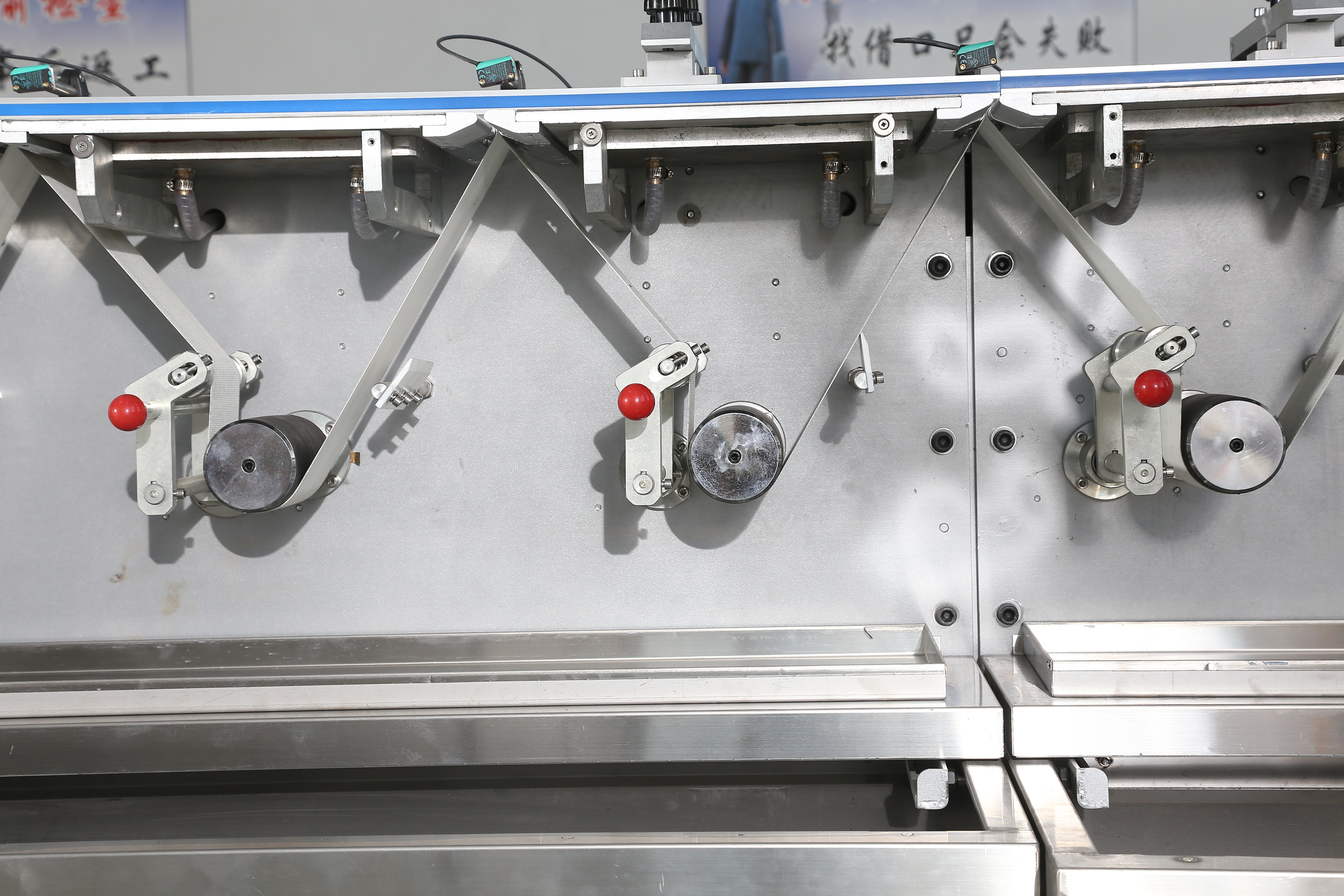

2.Totally: six section of separating belt, controlled by the servo motors, intelligent speed adjustment.

3.teflon scraper to avoid the candy pcs stick to the PU belt

Double Paper rollers structure and fast automatic paper splicer designed according to Germany Bosch as below:

Double Layers Electrical Cabinets (Mechanical and Electrical parts are separated).

Payment Terms:40% T/T in Advanced, the balance should be paid before delivery.

Delivery time:60 days after the deposit.

Package: Seaworthy Wooden Case.

Shipping by Sea.

Guarantee:

1.One year guarantee for the quality, if components are damaged naturally, we will replace it freely. If Manually damaged, the clients

Response for the costs.

2.provide the complete installation,debugging,technology support and staff training.

3.permanent accessory parts supply only to our clients for competitive price, quick response for the after-sales service.

Installation:

If the buyer need us to send engineer for installation, the

Buyer should pay for the round ticket, hotel and salary of usd80 per day for the engineer.
