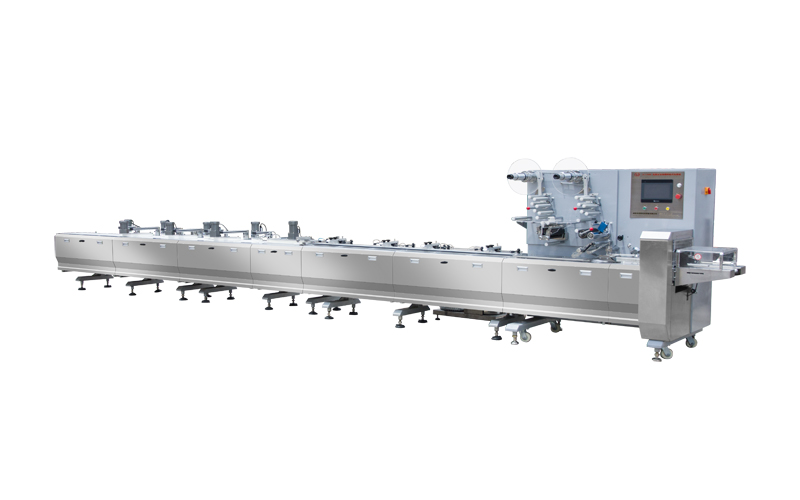

Dishwasher Detergent Tablets Packaging Machine(JY-L1000)

Automatic feeding Dishwasher Detergent Tablets  Packaging Machine(JY-L1000)

Function:

it's professional designed for the the Dishwasher Detergent tablet packaging.  To avoid of the corrosion from the dishwasher detergent tablets, we can accept the  customized service to make the contact part with detergent tablets as stainless steel structure.

Main Advantage:

1.NINE  Servo motors from Japan, Omron PLC and touch screen control.

2. Automatic feeding for the complete packing line.

3. automaticbelt speed adjustment through frequency converter,every conveyor belt is individual.

5. conveyor belt automatic deviation device through cylinder and photocell.

6. automatictemperature cooling through the air condition with two fans, air cooling or water cooling available.

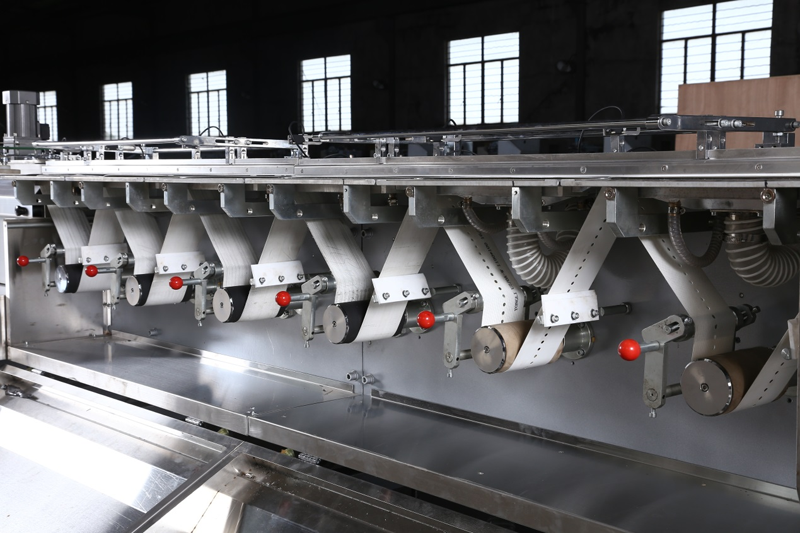

7.Double paper rollers, automatic paper splicer device (paper splicer device designed according to Germany Bosch)

Technical Parameters:

Packing Speed	50-1000pcs/min
Product Dimensions	According to real product size
Total Power	9.5kw
Outside Dimensions	8900mm*1180mm*1786mm(L*W*H)
Net Weight	3300kg
Power Source	400V;50HZ,3phase(can customized)
