Disc Feeding Pillow Packing Machine(JY-ZB1200)

Share to:
  • JY-ZB1200
  • HULK
  • 8422303090
  • 4KW
Availability:
Quantity:

High Speed Pillow Type Candy Packing Machine(JY-ZB1200)

note

If   need 304 machine structure, it will need to add 2000usd cost.

If   need Panasonic servo motors brand, it will need to add 3000USD.

Applications
This Pillow Packing Machine is widely used as below:
Food industry: Gum candy, Soft Gummy Candy, Toffee, Hard candy, scotch, etc.
Medical catalogue: The pills with the shape of spherical, ellipse, waist round, block, square, etc.

Main Features

-Three Servo Motors Control, Touch Screen Display.

-Ultra-big feeding Plate, Double Paper Roller Automatic splicer device.
-Automatic photocell tracking device, High precision cutting, and flexible for size adjustment.
-Touch screen display, r with steady performance, touch screen display.

Technical Parameters

packing   speed

50-1200   bags/min

Net   weight

1245KG

Finished   bag size

50mm-80mm

Outside   dimensions

2650mm×1200mm×1700mm

Total   power

4.5KW

voltage

380V,   50HZ(can be customized)

the   packing shape of product

Round   slice, ball shape, ellipse, waist round shape, cylindrical, block etc

adopted   product

hard   candy, soft candy, toffee, center filled candy, scotch, pill,chewing gum.

film

OPP,   CPP, aluminum plastic film and other hot-sealing material, etc

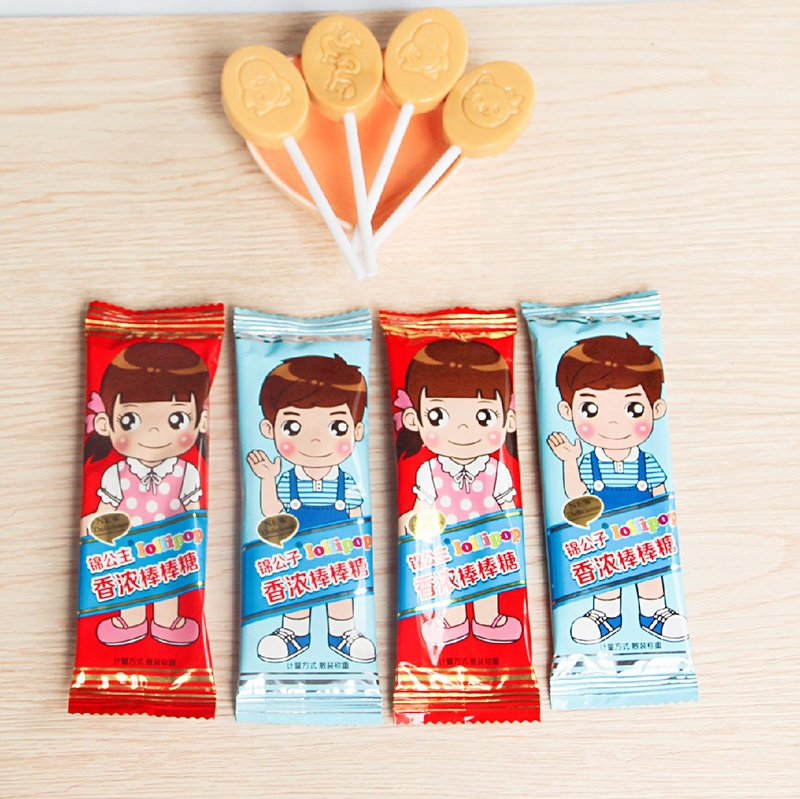

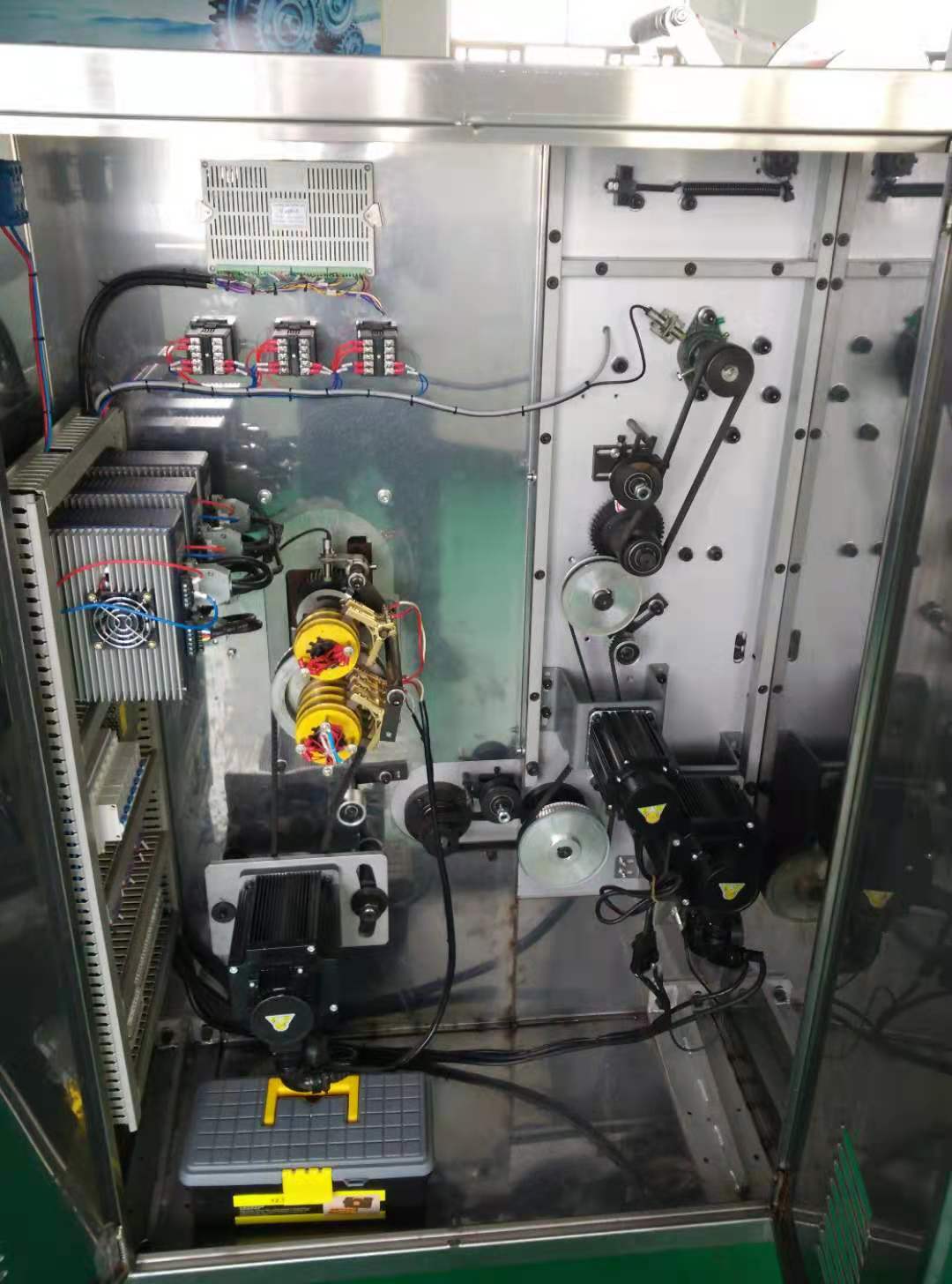

double paper rollers,auto splicer devicepillow packing machine(JY-ZB1200) (2)three servo motors systemphotobank (3)double pcs ball shape packagedouble pcs chewing gum微信图片_20210622203032
